Short rack connection
Suitable where the PDU outlet and powered equipment are close together, helping limit unused cable length.
C14 to C13 Black 0,5 m, 10a/250v, H05VV-F3G,75 Power Cord
IEC 60320 jumper cord · MK1110
Compact 0.5 m connection for rack equipment
This black C14 to C13 power cord connects an IEC C13 outlet on a PDU or UPS to equipment fitted with a C14 inlet. The short 0.5 m length helps reduce excess cable behind adjacent rack-mounted devices.

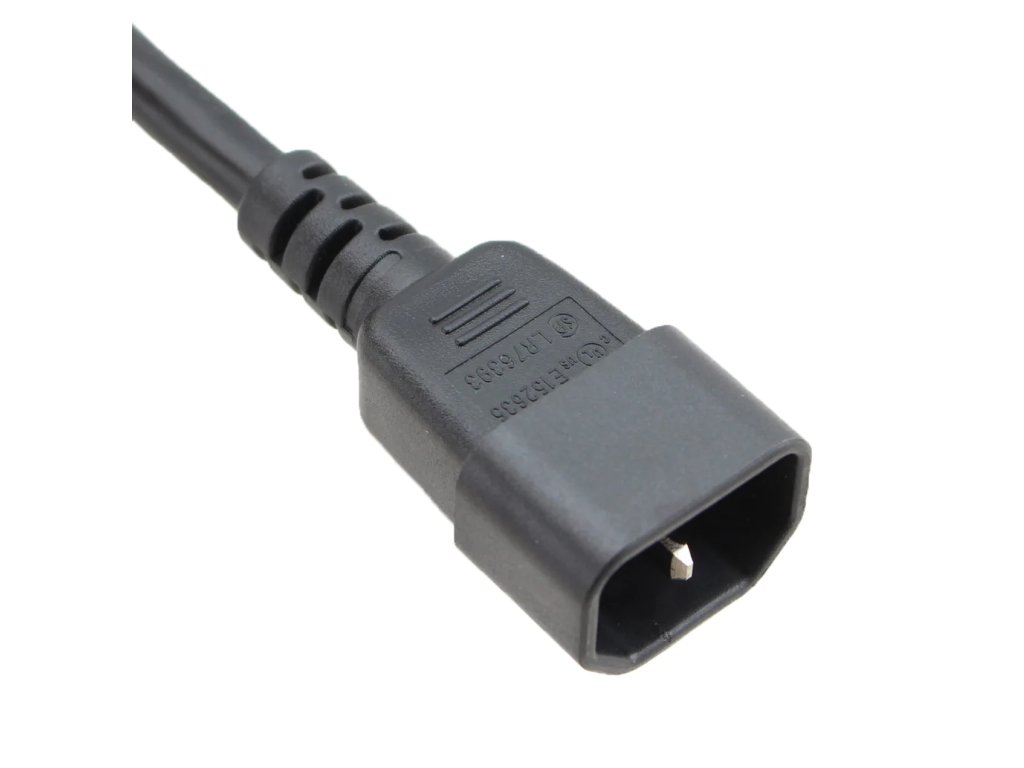

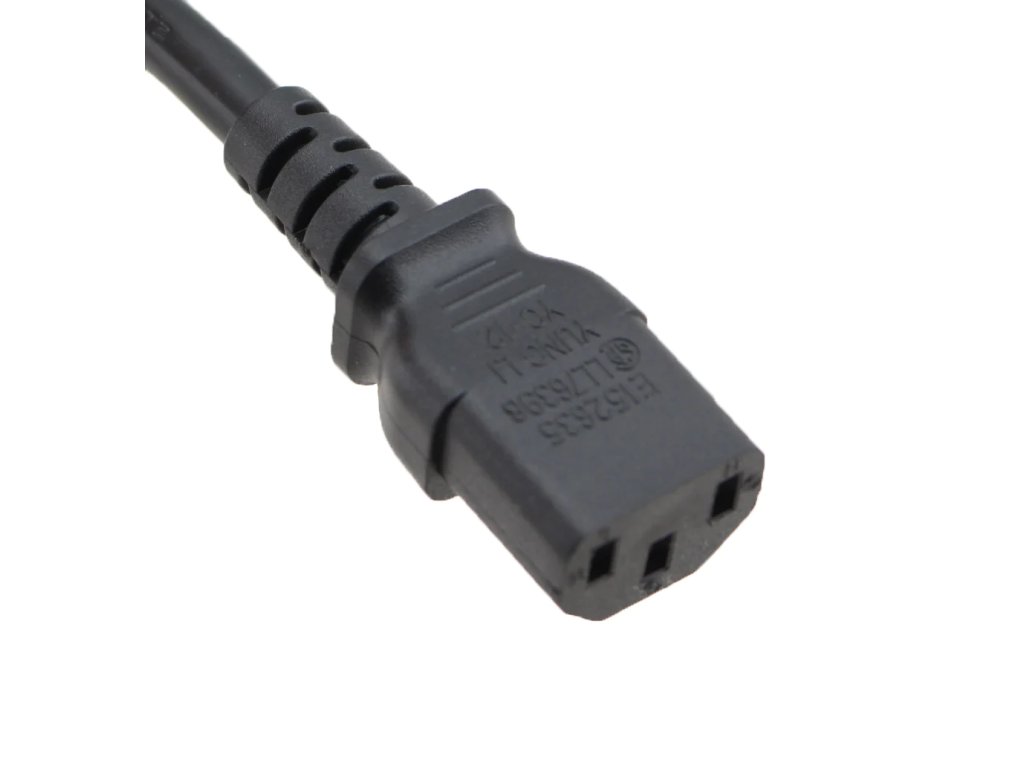

ConnectionC14 plug at the power source; C13 connector at the equipment. This is a standard non-locking cord.
Key specifications
10 A / 250 V
Use only within the rating of the complete cord and the connected PDU, outlet and equipment.
H05VV-F 3G0.75
Black flexible PVC cable with three 0.75 mm² conductors, including the protective-earth conductor.
Typical applications
PDU to IT equipment
- Servers and storage systems
- Network switches and routers
- Other equipment with an IEC C14 inlet
Download the product drawing
Use the product drawing to check dimensions, construction and other product-specific information for MK1110.
Download drawing (PDF)Need a retained connection? This standard C14 to C13 cord does not provide a positive locking function. For applications exposed to accidental disconnection, compare the P-Lock and WS-Lock ranges.
Need another length, colour or quantity?
MK Cable can help you select a stock alternative or prepare a quotation for a project requirement.
Additional parameters
| Category: | C14 to C13 Black |
|---|---|
| Length: | 0,5 m |
| Color: | Black |
| Conductor Size: | 0,75 sqmm |
| Amperage: | 10 Amp |
| Jacket: | H05VV-F |
| Certification: | CE, ENEC, VDE, UK ASTA |
| Connector: | C13 |
| Plug: | C14 |
| Voltage: | 250 V |
| Model no.: | CZC14.75E19 |
