Longer equipment routing
The 3.0 m length supports flexible routing between the power source and equipment.

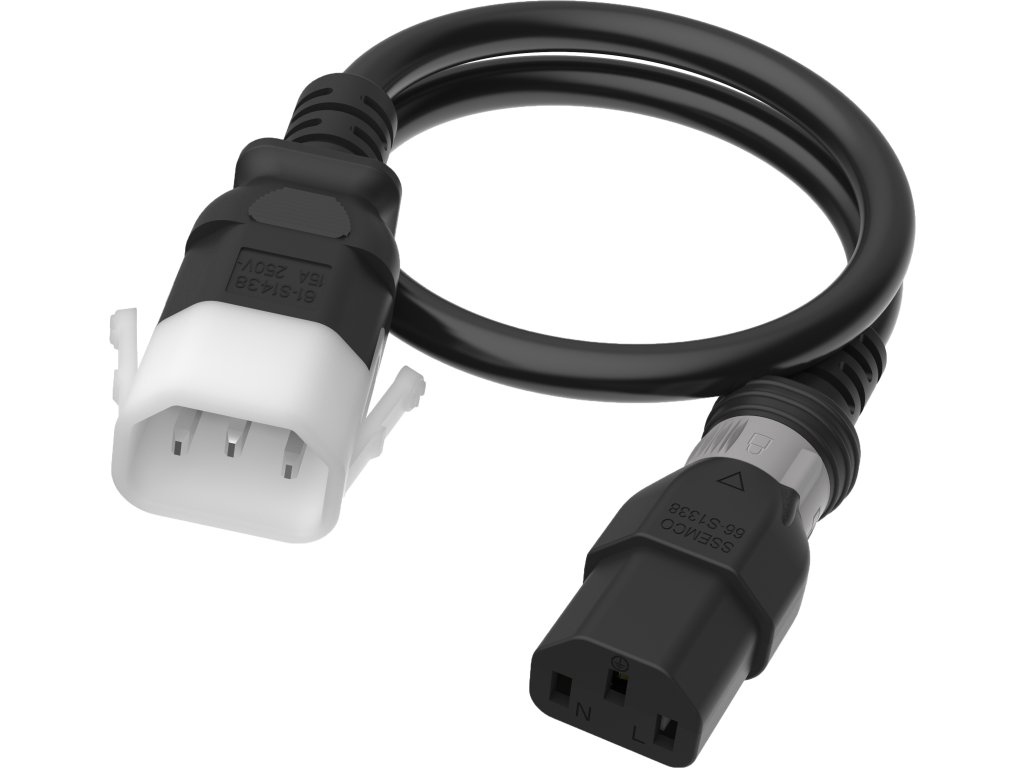

C14 to C13 D-Lock, 3,0 m Black, 10a/250v, H05VV-F 1,00 Power Cord
C14 to C13 D-Lock, 3,0 m Black, 10a/250v, H05VV-F 1,00 Power Cord
Locking power cord · MK7810
3.0 m D-Lock connection for critical equipment
This black D-Lock cord combines a C14 P-Lock plug at the source with a C13 S-Lock connector at the equipment.
ConnectionC14 P-Lock plug at the PDU; C13 S-Lock connector at the equipment. The equipment side secures to a standard C14 inlet.
Key specifications
10 A / 250 V
Use only within the rating of the complete product and every connected outlet, inlet and device.
H05VV-F 1.00
Flexible PVC cable construction for professional equipment connections.
Typical applications
PDU to IT equipment
- Servers and storage systems
- Network switches and routers
- Other equipment with an IEC C14 inlet
Download the product drawing
Use the product drawing to check dimensions, construction and other product-specific information for MK7810.
Download drawing (PDF)PDU compatibility is required. The equipment end locks to a standard C14 inlet, but the PDU end locks only in a compatible P-Lock outlet.
Need another length, color or quantity?
MK Cable can help you select a stock alternative or prepare a quotation for a project requirement.
Additional parameters
| Category: | Locking Power Cords |
|---|---|
| Length: | 3,0 m |
| Color: | Black |
| Conductor Size: | 1,0 sqmm |
| Amperage: | 10 Amp |
| Jacket: | H05VV-F |
| Certification: | VDE / TUV |
| Connector: | C13 S-Lock |
| Plug: | C14 P-Lock |
| Voltage: | 250 V |
| Model no.: | 614830-233000 |
