The 1.5 m length supports flexible routing between the power source and equipment.
C14 to C13 P-Lock, 1,5 m Blue, 10a/250v, H05VV-F 0,75 Power Cord
Locking power cord · MK6420
1.5 m P-Lock connection for critical equipment

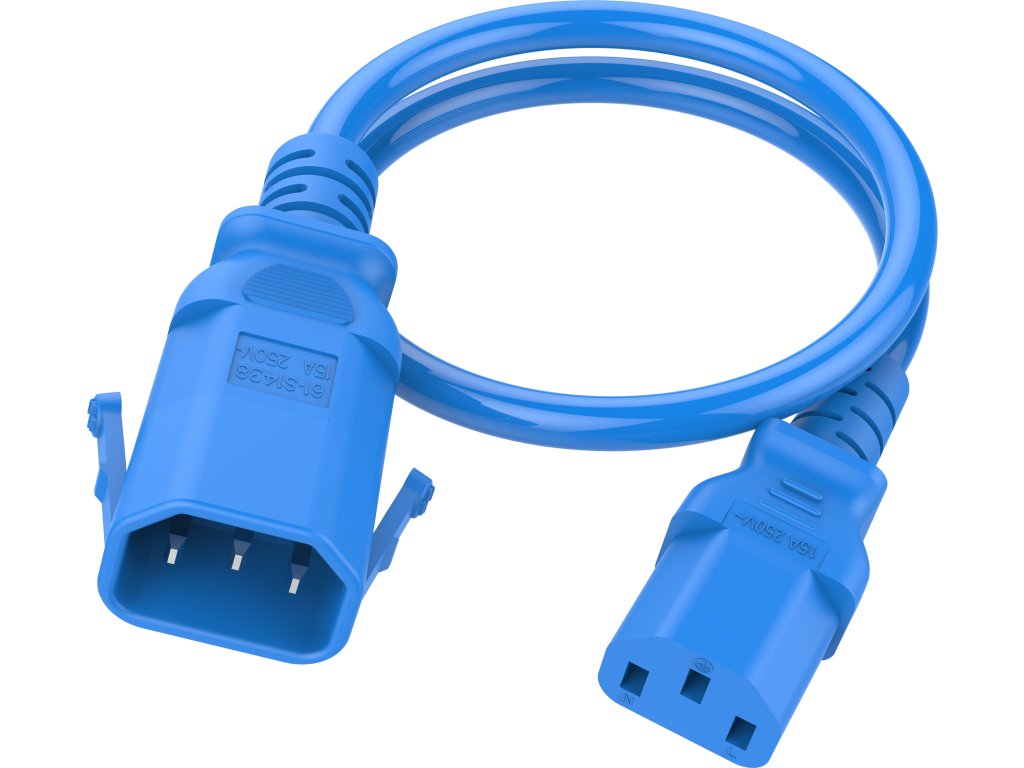

This blue C14 to C13 P-Lock cord provides positive retention at the PDU side when paired with a compatible locking outlet.
ConnectionC14 P-Lock plug at the PDU; standard C13 connector at the equipment. The equipment-side connection is non-locking.
Key specifications
10 A / 250 V
Use only within the rating of the complete product and every connected outlet, inlet and device.
H05VV-F 0.75
Flexible PVC cable construction for professional equipment connections.
Typical applications
PDU to IT equipment
- Servers and storage systems
- Network switches and routers
- Other equipment with an IEC C14 inlet
Drawing not yet available
A verified PDF drawing must be uploaded and linked before this HTML is published.
Compatible locking outlet required. The C14 P-Lock plug can mate electrically with a standard IEC C13 outlet, but positive retention engages only in a compatible P-Lock outlet.
Need another length, color or quantity?
MK Cable can help you select a stock alternative or prepare a quotation for a project requirement.
Additional parameters
| Category: | C14 to C13 P-Lock |
|---|---|
| Length: | 1,5 m |
| Color: | Blue |
| Conductor Size: | 0,75 sqmm |
| Amperage: | 10 Amp |
| Jacket: | H05VV-F |
| Certification: | CE, VDE |
| Connector: | C13 |
| Plug: | C14 P-Lock |
| Voltage: | 250 V |
| Model no.: | 614130-131502 |
