Extended equipment routing
The 2.5 m length supports flexible routing between the power source and equipment.

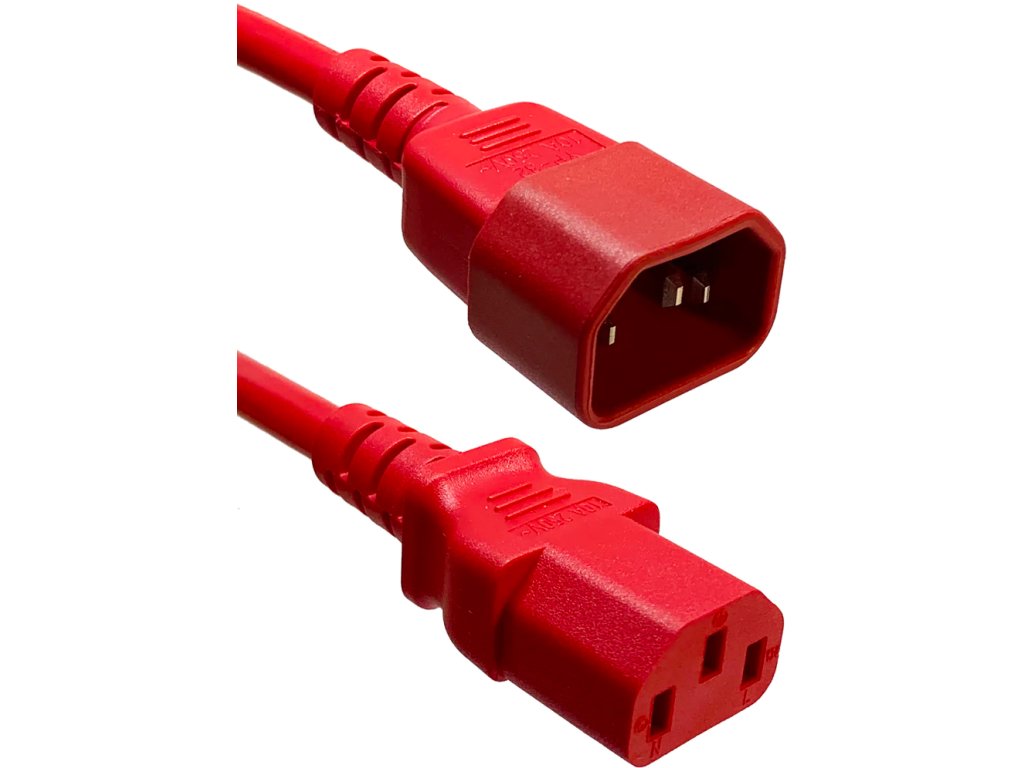

C14 to C13 Red 2,5 m, 10a/250v, H05Z1Z1-F 3G1,0mm2 LSZH Power Cord
IEC 60320 jumper cord · MK1731
2.5 m red C14 to C13 equipment connection
This red power cord connects an IEC C13 outlet on a PDU or UPS to equipment fitted with an IEC C14 inlet. The 2.5 m length provides a defined cable route for professional installations.

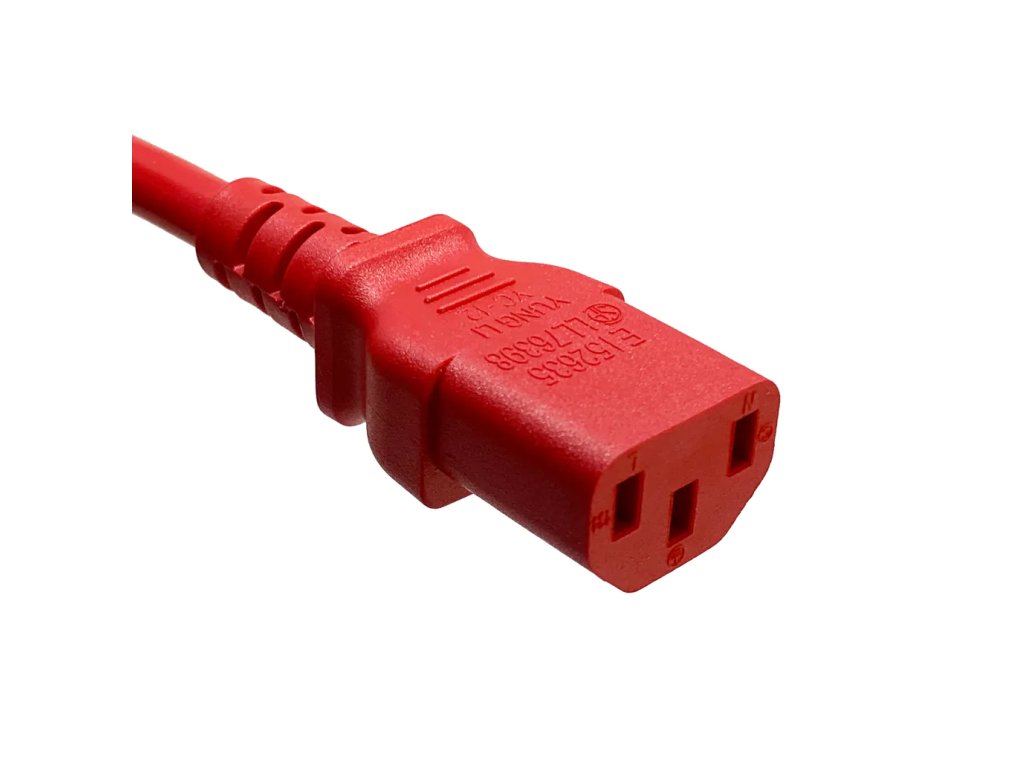

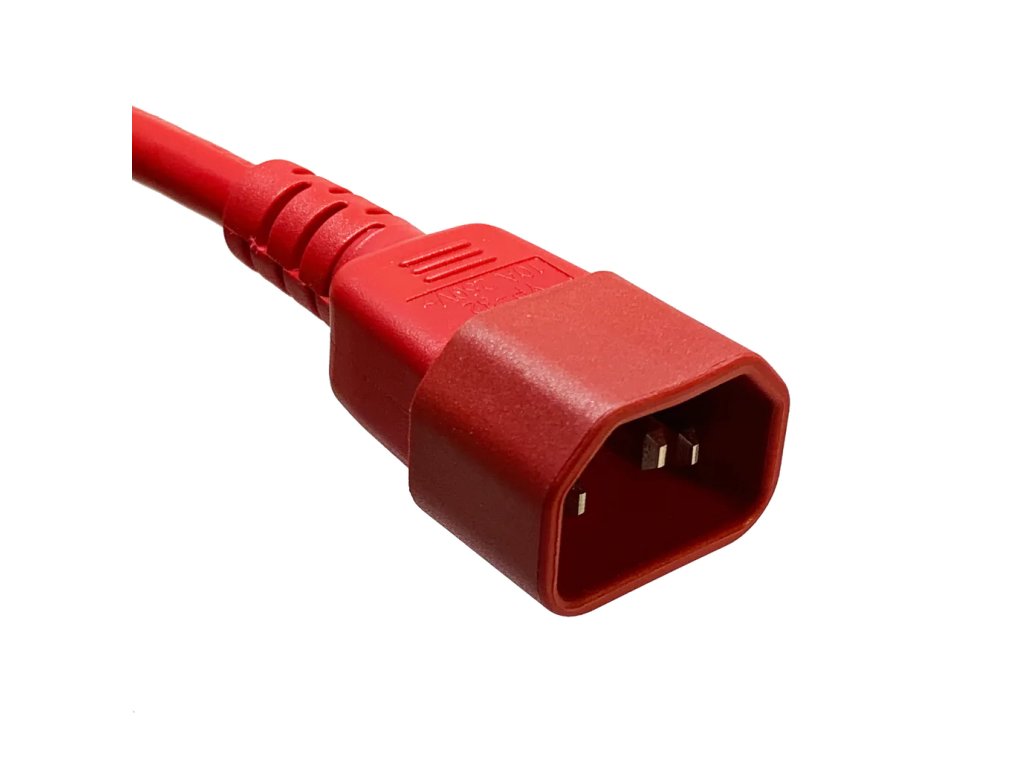

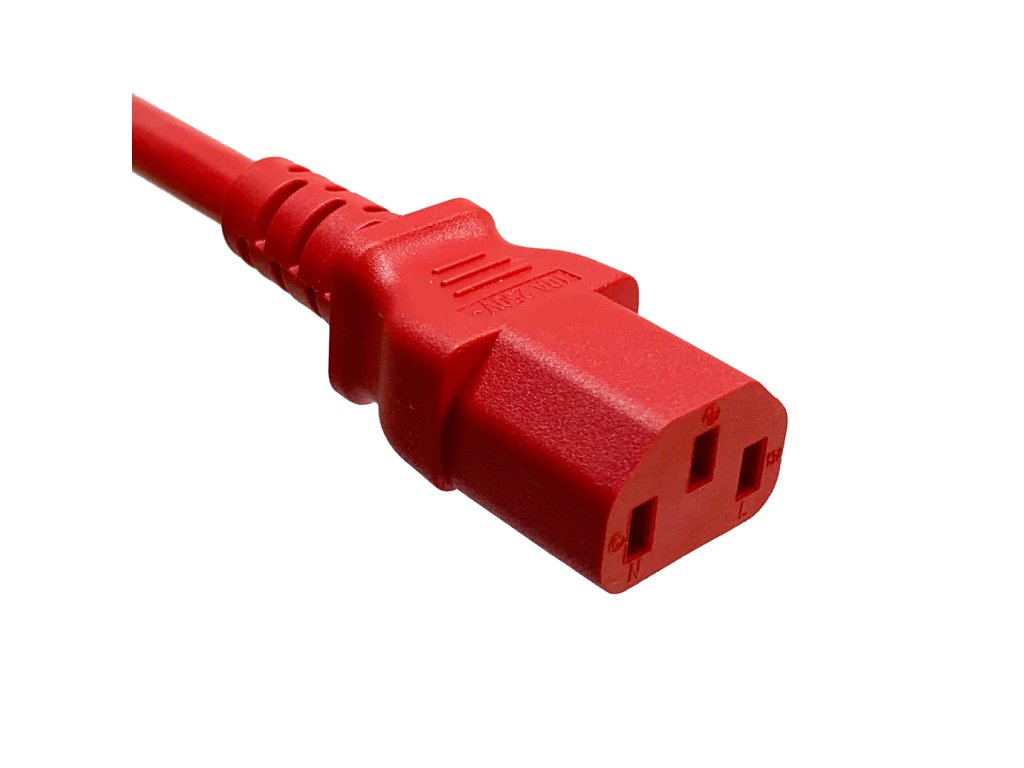

ConnectionC14 plug at the power source; C13 connector at the equipment. This is a standard non-locking cord.
Key specifications
10 A / 250 V
Use only within the rating of the complete product and every connected outlet, inlet and device.
H05Z1Z1-F 3G1.0
Low-smoke zero-halogen cable construction for projects that specify reduced smoke and halogen emissions.
Typical applications
PDU to IT equipment
- Servers and storage systems
- Network switches and routers
- Other equipment with an IEC C14 inlet
Download the product drawing
Use the product drawing to check dimensions, construction and other product-specific information for MK1731.
Download drawing (PDF)LSZH does not mean fire-resistant. Confirm any required flame, smoke and halogen-performance classification against the exact product documentation.
Need another length, color or quantity?
MK Cable can help you select a stock alternative or prepare a quotation for a project requirement.
Additional parameters
| Category: | C14 to C13 LSZH |
|---|---|
| Length: | 2,5 m |
| Color: | Red |
| Conductor Size: | 1,0 sqmm |
| Amperage: | 10 Amp |
| Jacket: | H05Z1Z1-F |
| Certification: | CE, ENEC, VDE |
| Connector: | C13 |
| Plug: | C14 |
| Voltage: | 250 V |
| Model no.: | CZC141.0E98RLSZH |
