Compact connection
The 0.5 m length supports short equipment connections and reduced excess cable.
C14 to C13 WS-Lock, 0,5 m Black, 10a/250v, H05VV-F3G1,0 & 17/3 SJT Power Cord
Locking power cord · MK7110
0.5 m WS-Lock connection for critical equipment

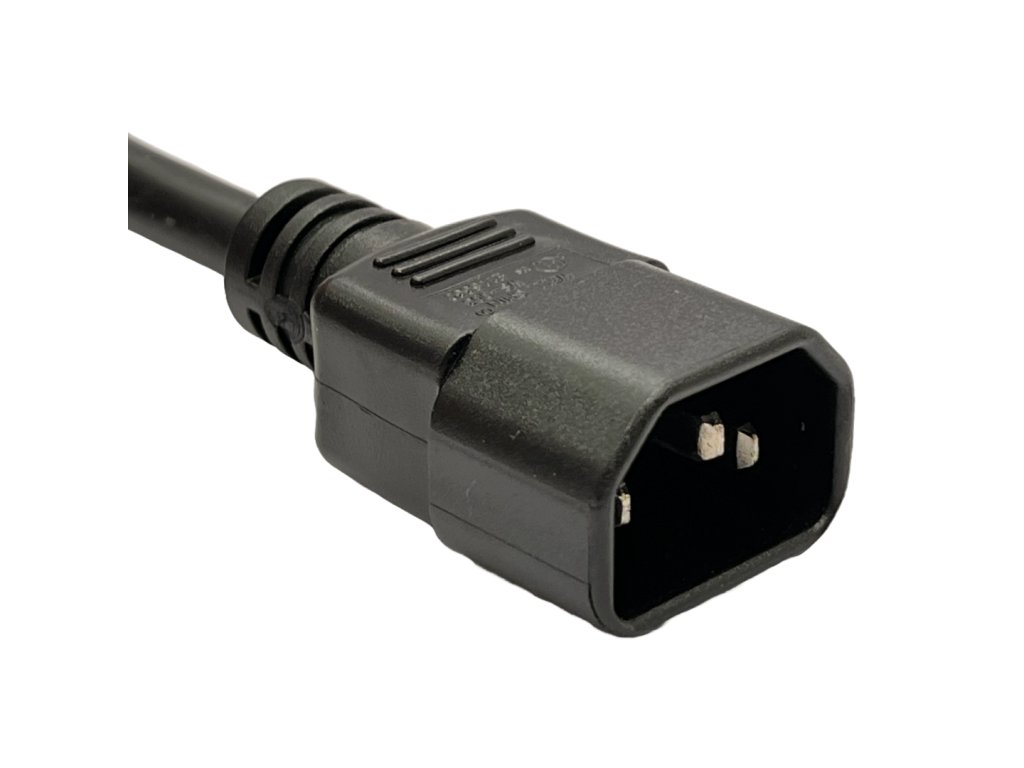

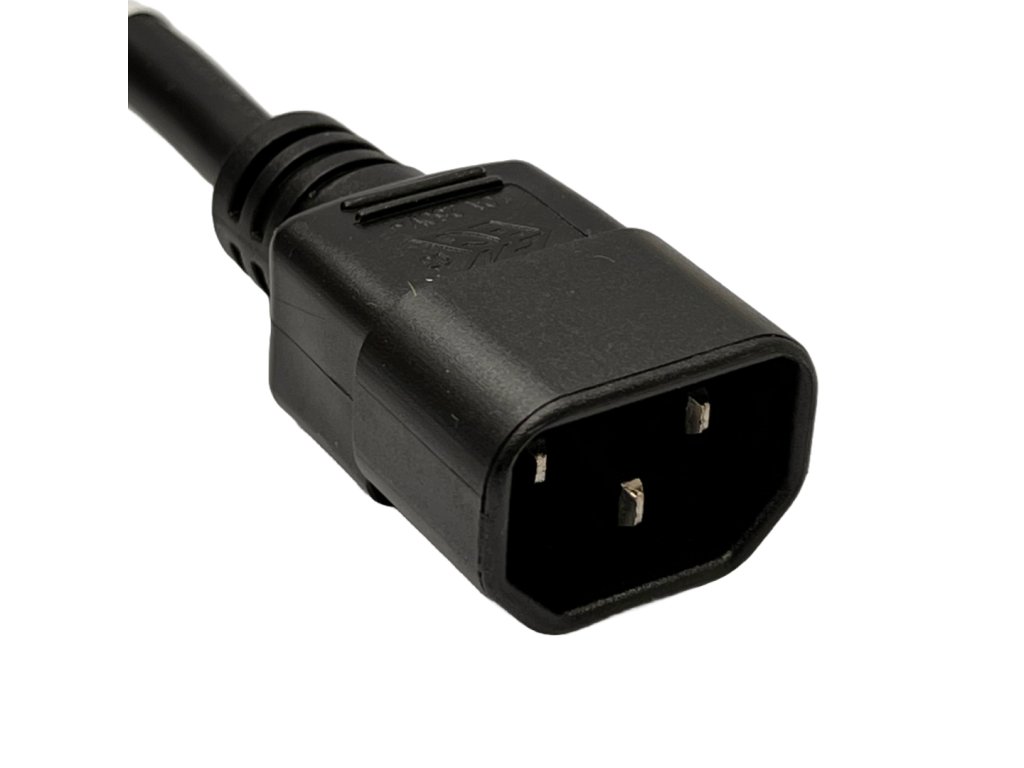

This black C14 to C13 WS-Lock cord secures the equipment-side connector to a standard IEC C14 inlet. The PDU-side C14 connection remains non-locking.
ConnectionStandard C14 plug at the PDU; C13 WS-Lock connector at the equipment. No proprietary equipment inlet is required.
Key specifications
10 A / 250 V
Use only within the rating of the complete product and every connected outlet, inlet and device.
H05VV-F3G1.0
Flexible PVC cable construction for professional equipment connections.
Typical applications
PDU to IT equipment
- Servers and storage systems
- Network switches and routers
- Other equipment with an IEC C14 inlet
Download the product drawing
Use the product drawing to check dimensions, construction and other product-specific information for MK7110.
Download drawing (PDF)Equipment-side retention only. The WS-Lock connector secures at the device; the standard C14 plug does not lock at the PDU.
Need another length, color or quantity?
MK Cable can help you select a stock alternative or prepare a quotation for a project requirement.
Additional parameters
| Category: | C14 to C13 WS-Lock |
|---|---|
| Length: | 0,5 m |
| Color: | Black |
| Conductor Size: | 1,0 sqmm, 17 AWG |
| Amperage: | 10 Amp |
| Jacket: | H05VV-F, SJT |
| Certification: | CE, ENEC, UL |
| Connector: | C13 WS-Lock |
| Plug: | C14 |
| Voltage: | 250 V |
| Model no.: | CZC141.0/17WS19 |
