Compact connection
The 0.5 m length supports short equipment connections and reduced excess cable.

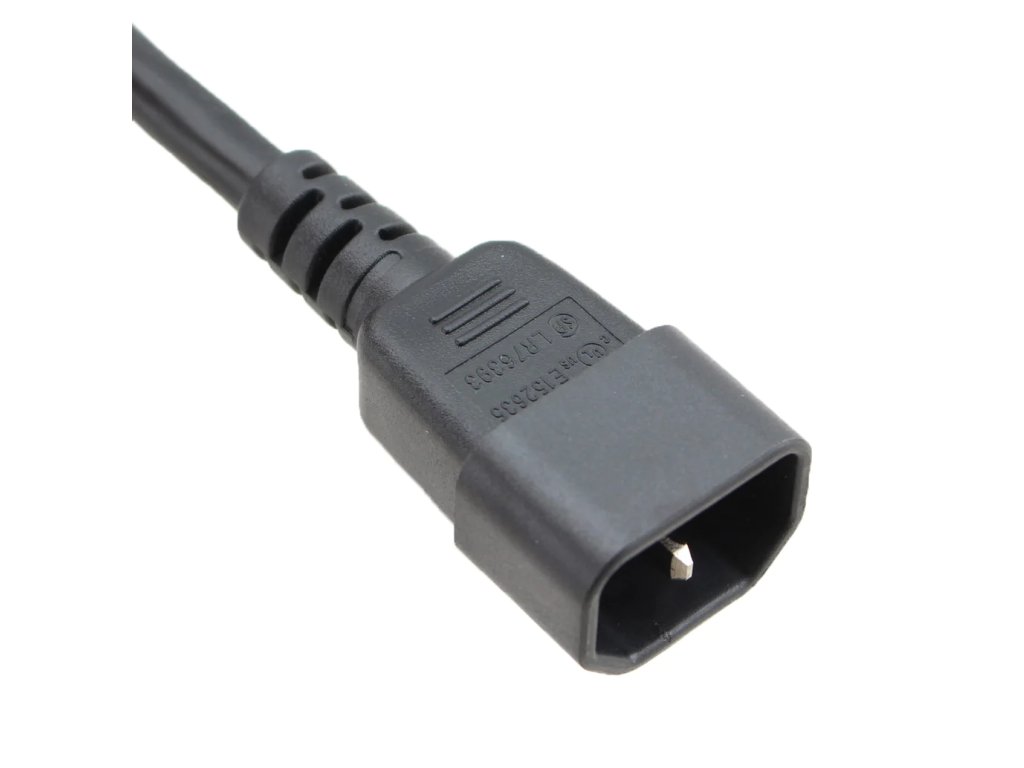

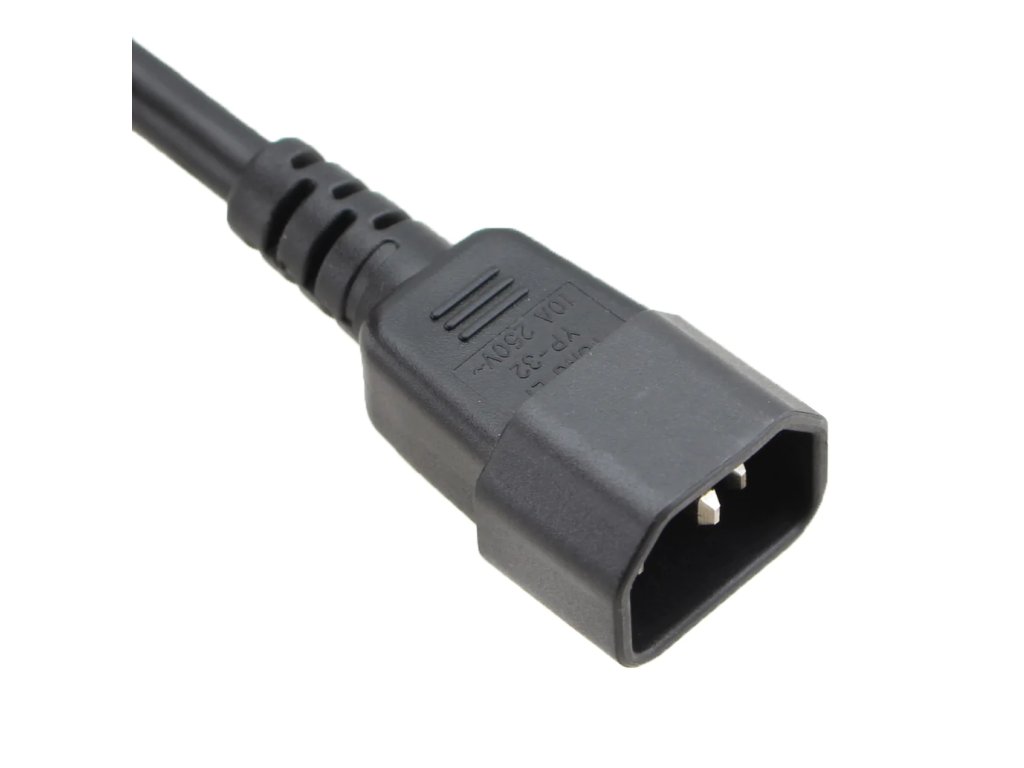

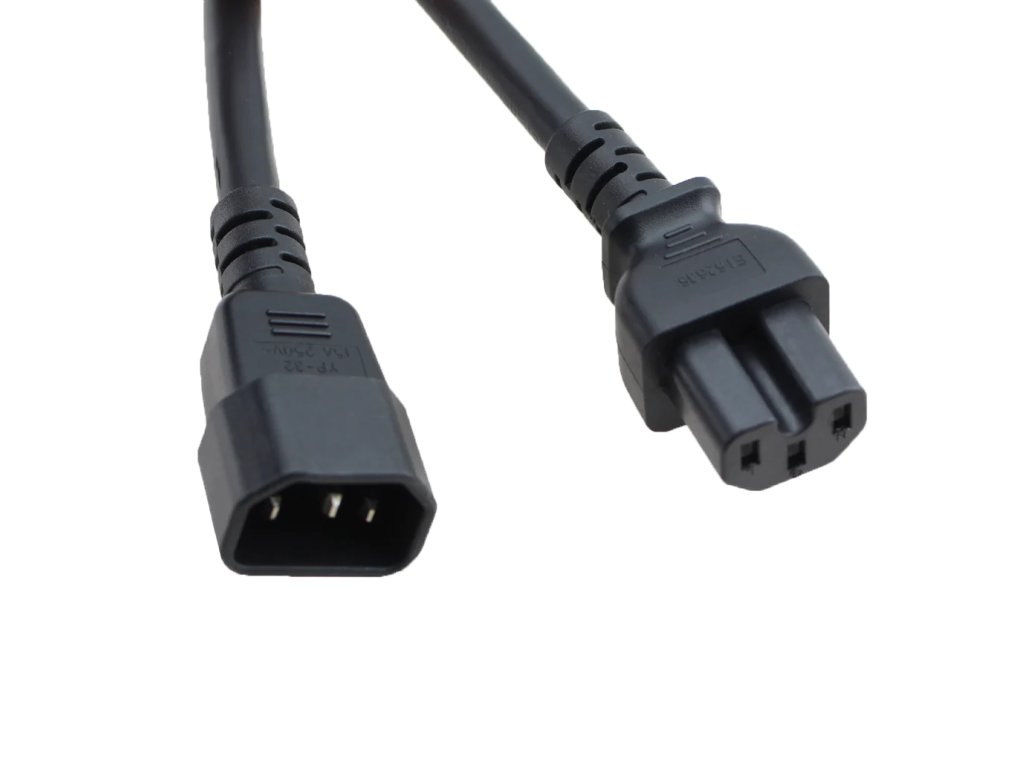

C14 to C15 Black 0,5 m, 10a/250v, H05V2V2-F3G1,0 Power Cord
IEC 60320 jumper cord · MK3111
0.5 m black C14 to C15 equipment connection
This black power cord connects an IEC C13 outlet on a PDU or UPS to equipment fitted with an IEC C16 inlet. The 0.5 m length provides a defined cable route for professional installations.
ConnectionC14 plug at the power source; C15 connector at the equipment. This is a standard non-locking cord.
Key specifications
10 A / 250 V
Use only within the rating of the complete product and every connected outlet, inlet and device.
H05V2V2-F3G1.0
Heat-resistant PVC cable construction; the complete-cord temperature rating still depends on every component.
Typical applications
Hot-condition equipment
- Equipment fitted with an IEC C16 inlet
- Professional IT and industrial devices
- Applications requiring the exact product temperature rating
Drawing not yet available
A verified PDF drawing must be uploaded and linked before this HTML is published.
Hot-condition interface. The connector type alone does not define the usable temperature of the complete cord; verify the SKU specification.
Need another length, color or quantity?
MK Cable can help you select a stock alternative or prepare a quotation for a project requirement.
Additional parameters
| Category: | C14 to C15 Black |
|---|---|
| Length: | 0,5 m |
| Color: | Black |
| Conductor Size: | 1,0 sqmm |
| Amperage: | 10 Amp |
| Jacket: | H05V2V2 |
| Certification: | CE, ENEC, VDE |
| Connector: | C15 |
| Plug: | C14 |
| Voltage: | 250 V |
| Model no.: | CZC141.0C1519H05V2V2 |
