Extended equipment routing
The 2.0 m length provides additional reach between the power source and connected equipment.
C14 to C19 Black 2,0 m, 15a/250v 14/3 SJT Power Cord
Mixed IEC connection · MK0613

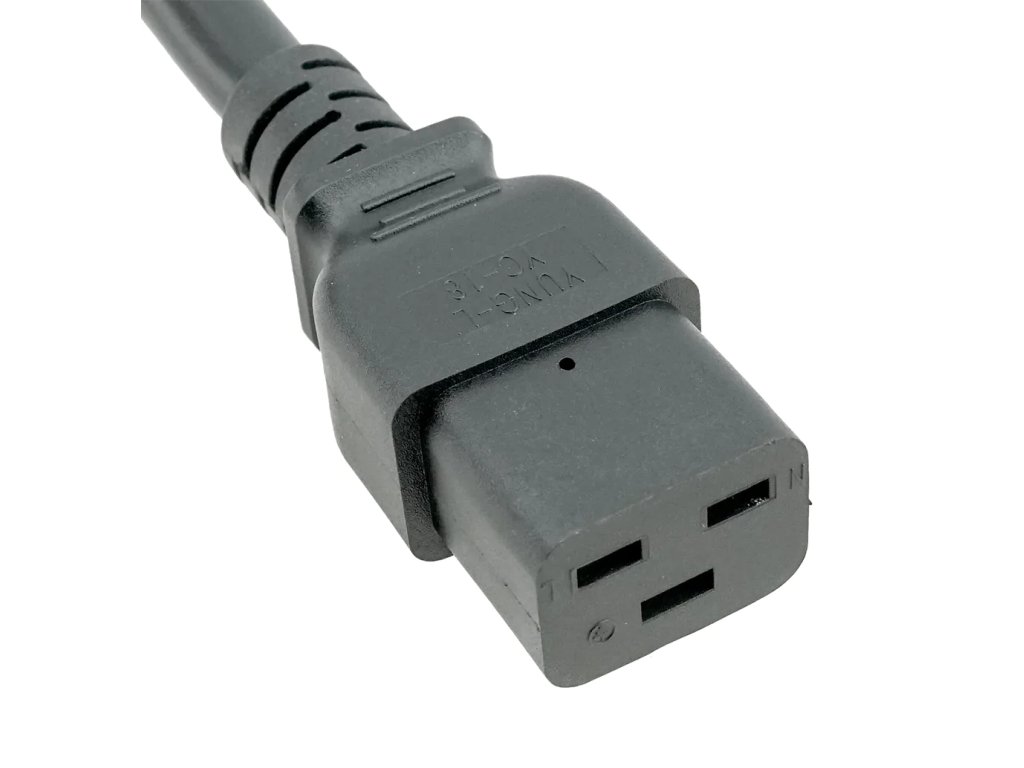

2.0 m black C14 to C19 equipment connection
This black power cord connects an IEC C13 outlet on a PDU or UPS to equipment fitted with an IEC C20 inlet. The 2.0 m length provides additional reach for professional equipment installations.
ConnectionC14 plug at the power source; C19 connector at the equipment. This is a standard non-locking cord for a specific cross-connection.
Key specifications
15 A / 250 V
Use only within the rating of the complete cord and every connected outlet, inlet and device.
14/3 SJT
North American SJT cable construction with UL and cUL approvals for the complete product.
Typical applications
Controlled IEC cross-connections
- PDUs or UPS units fitted with IEC C13 outlets
- Equipment fitted with an IEC C20 inlet
- Professional IT, data-centre and equipment installations
Download the product drawing
Use the product drawing to check dimensions, construction and other product-specific information for MK0613.
Download drawing (PDF)Not a higher-power feed. The C19 connector does not increase the capacity available from the C14 source connection. The complete installation is limited by its lowest-rated component and applicable approval.
Need another length, color or quantity?
MK Cable can help you select a stock alternative or prepare a quotation for a project requirement.
Additional parameters
| Category: | C14 to C19 Power Cords |
|---|---|
| Length: | 2,0 m |
| Color: | Black |
| Conductor Size: | 14 AWG |
| Amperage: | 15 Amp |
| Jacket: | SJT |
| Certification: | UL, cUL |
| Connector: | C19 |
| Plug: | C14 |
| Voltage: | 250 V |
| Model no.: | CZC1414C1979 |
