Short equipment connection
The 1.0 m length supports short equipment connections and reduced excess cable.
C14 to C7 Black 1,0 m, 2,5a/250v, H03VVH2-F2,75 Power Cord
IEC 60320 jumper cord · MK0213
1.0 m black C14 to C7 equipment connection
This black power cord connects an IEC C13 outlet on a PDU or UPS to equipment fitted with an IEC C8 inlet. The 1.0 m length provides a defined cable route for professional installations.

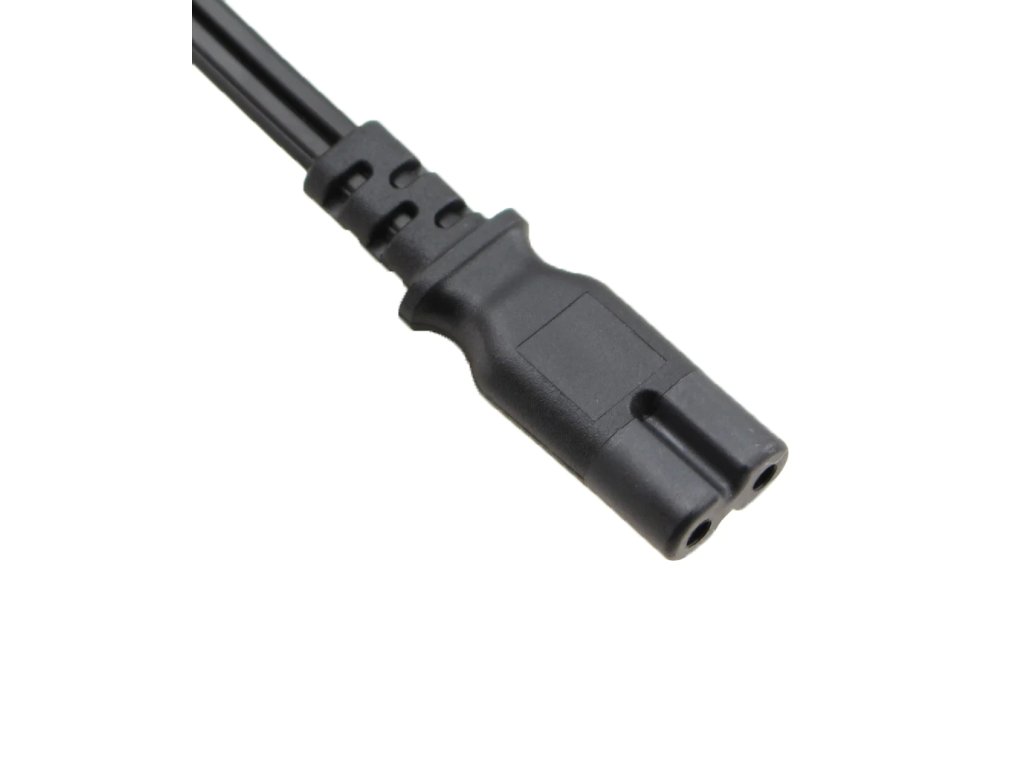

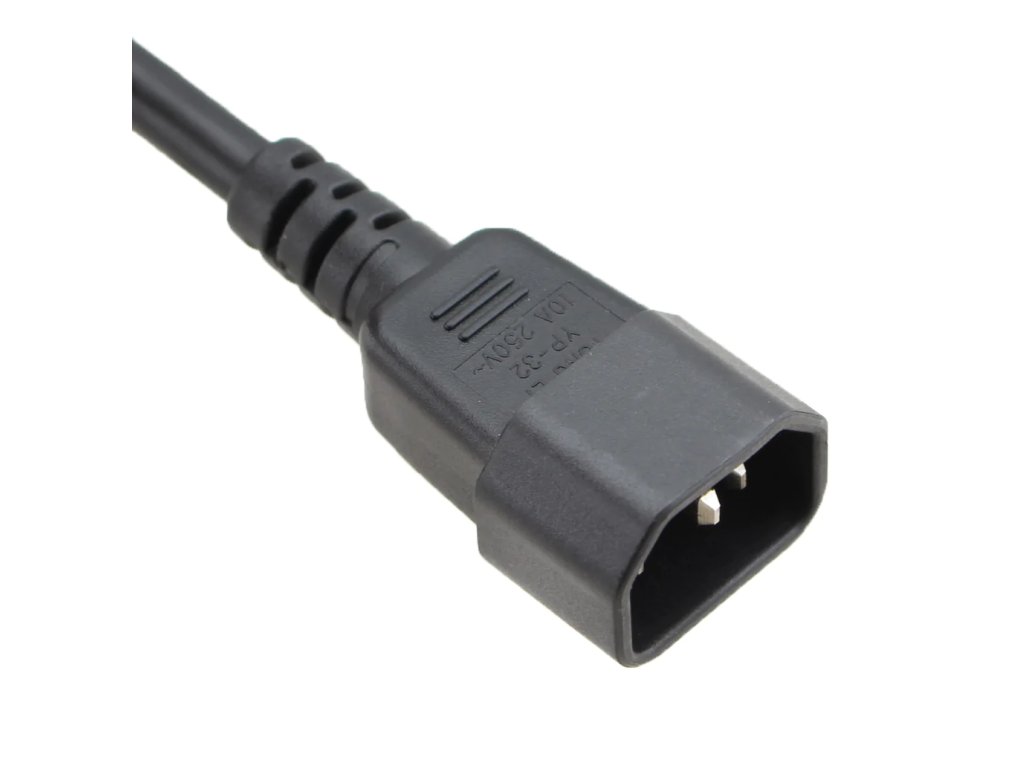

ConnectionC14 plug at the power source; C7 connector at the equipment. This is a standard non-locking cord.
Key specifications
2.5 A / 250 V
Use only within the rating of the complete product and every connected outlet, inlet and device.
H03VVH2-F2.75
Two-core construction without a protective-earth conductor.
Typical applications
Class II equipment
- Compatible two-pin power supplies
- Equipment fitted with an IEC C8 inlet
- Applications that do not require protective earth
Download the product drawing
Use the product drawing to check dimensions, construction and other product-specific information for MK0213.
Download drawing (PDF)No protective earth. The C7/C8 interface is a two-conductor connection intended for compatible Class II equipment.
Need another length, color or quantity?
MK Cable can help you select a stock alternative or prepare a quotation for a project requirement.
Additional parameters
| Category: | IEC Power Cords |
|---|---|
| Length: | 1,0 m |
| Color: | Black |
| Conductor Size: | 0,75 sqmm |
| Amperage: | 2,5 Amp |
| Jacket: | H03VVH2-F |
| Certification: | None |
| Connector: | C7 |
| Plug: | C14 |
| Voltage: | 250 V |
| Model no.: | CZC14.75C739H03VVH |
