Longer equipment routing
The 3.0 m length supports flexible routing between the power source and equipment.

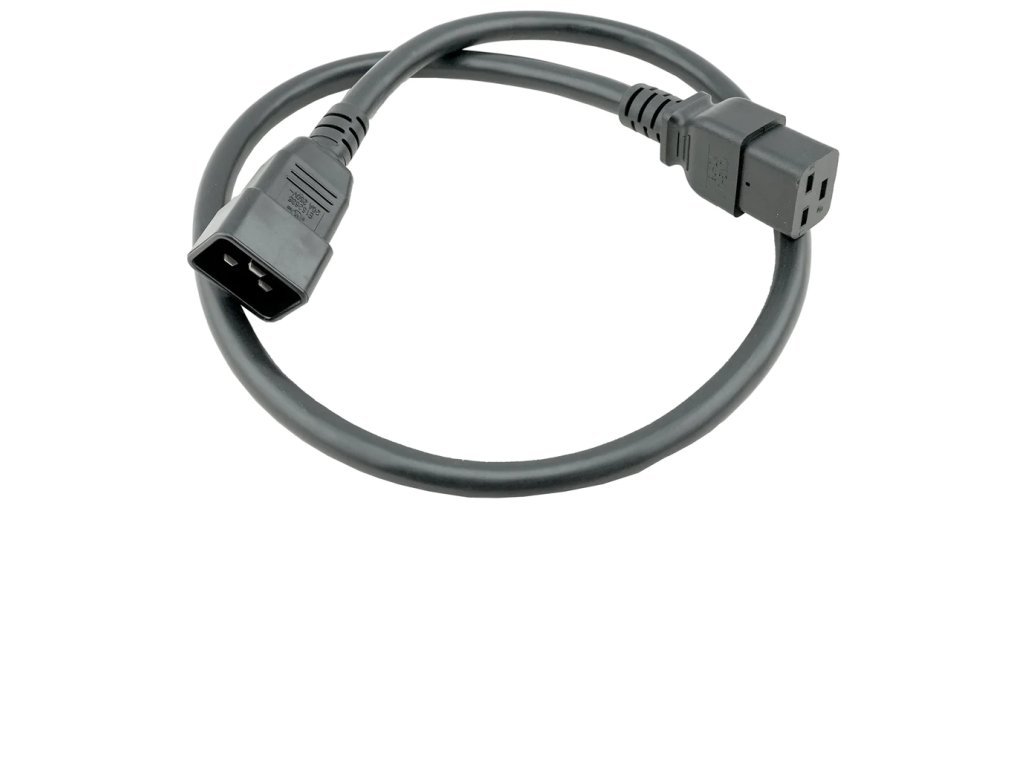

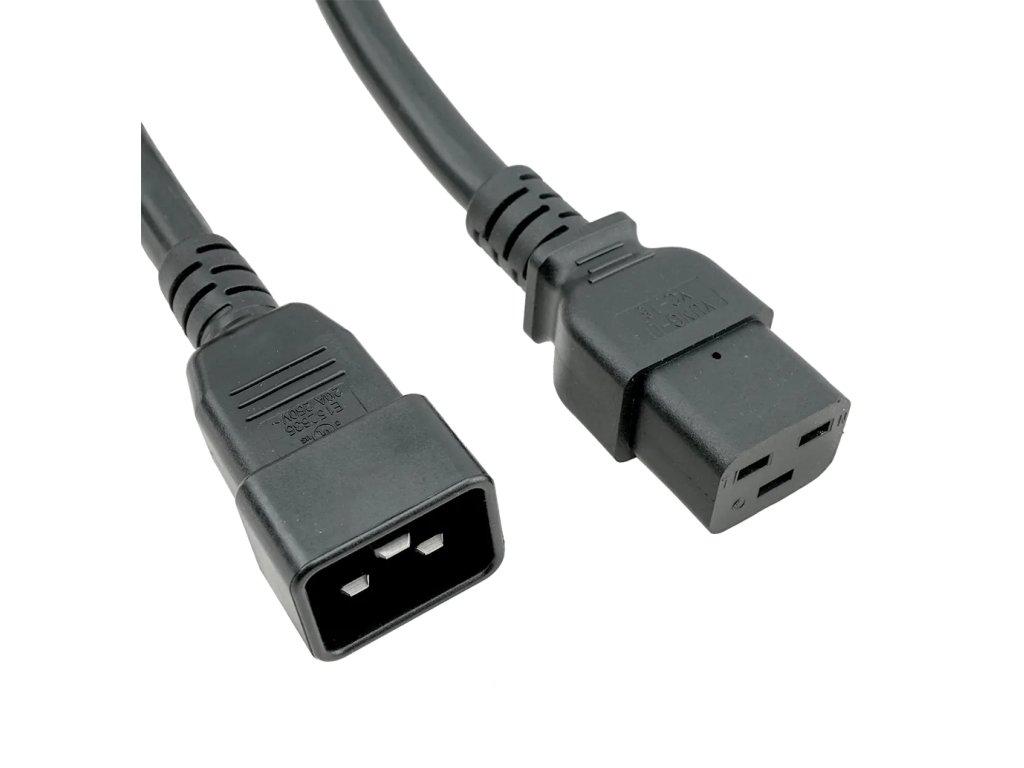

C20 to C19 Black 3,0 m, 16a/250v, H05VV-F3G1.5 Power Cord
IEC 60320 jumper cord · MK2810
3.0 m black C20 to C19 equipment connection
This black power cord connects an IEC C19 outlet on a PDU or UPS to equipment fitted with an IEC C20 inlet. The 3.0 m length provides a defined cable route for professional installations.

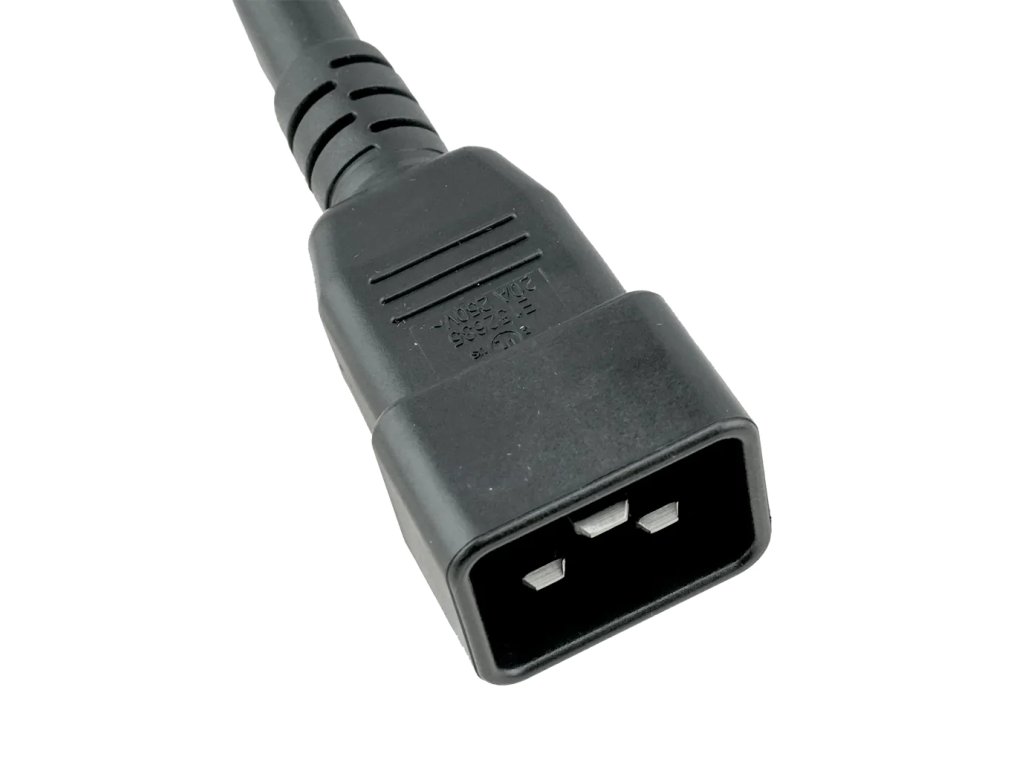

ConnectionC20 plug at the power source; C19 connector at the equipment. This is a standard non-locking cord.
Key specifications
16 A / 250 V
Use only within the rating of the complete product and every connected outlet, inlet and device.
H05VV-F3G1.5
Flexible PVC cable construction for professional equipment connections.
Typical applications
Higher-current equipment
- Servers, UPS systems and power distribution
- Equipment fitted with an IEC C20 inlet
- Data-center and industrial installations
Download the product drawing
Use the product drawing to check dimensions, construction and other product-specific information for MK2810.
Download drawing (PDF)Need PDU-side retention? Compare the C20 to C19 P-Lock range and confirm compatibility with the PDU outlet.
Need another length, color or quantity?
MK Cable can help you select a stock alternative or prepare a quotation for a project requirement.
Additional parameters
| Category: | C20 to C19 Black |
|---|---|
| Length: | 3,0 m |
| Color: | Black |
| Conductor Size: | 1,5 sqmm |
| Amperage: | 16 Amp |
| Jacket: | H05VV-F |
| Certification: | CE, ENEC, VDE, UK ASTA |
| Connector: | C19 |
| Plug: | C20 |
| Voltage: | 250 V |
| Model no.: | CZC201.5E120 |
