Standard equipment routing
The 1.8 m length supports flexible routing between the power source and equipment.
International power cord · MK0519
Brazilian two-pin plug cord for equipment with an IEC C8 inlet
This black Brazilian two-pin plug to IEC C7 power cord connects a compatible mains outlet to equipment fitted with an IEC C8 inlet. The cable length is 1.8 m.

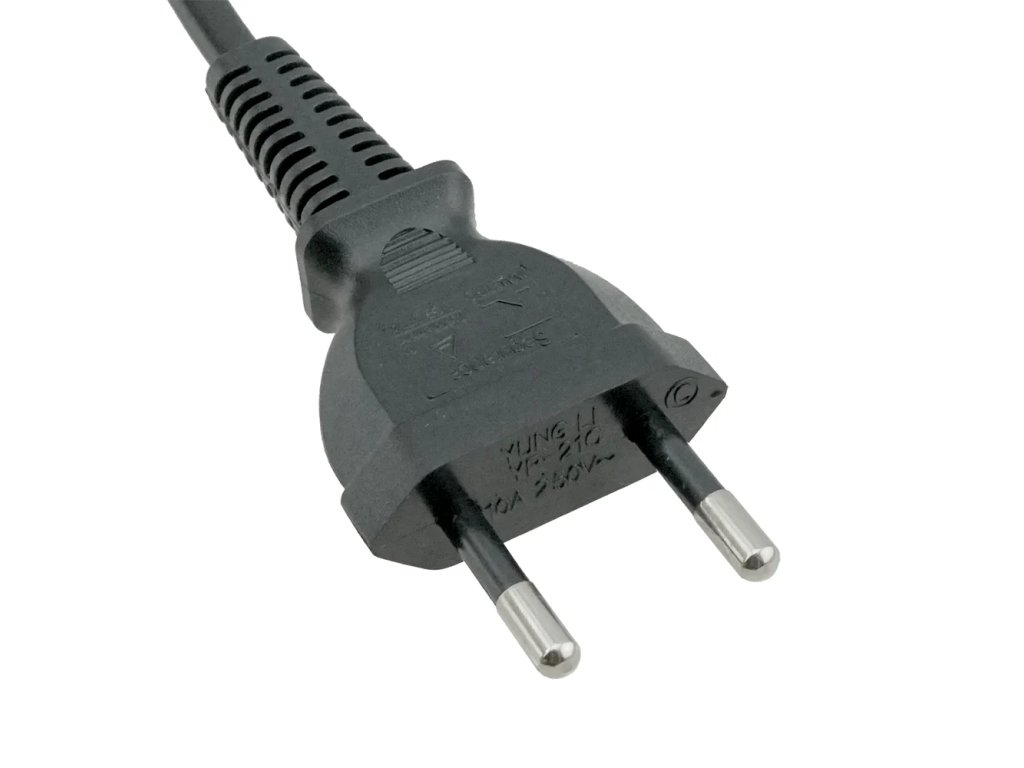

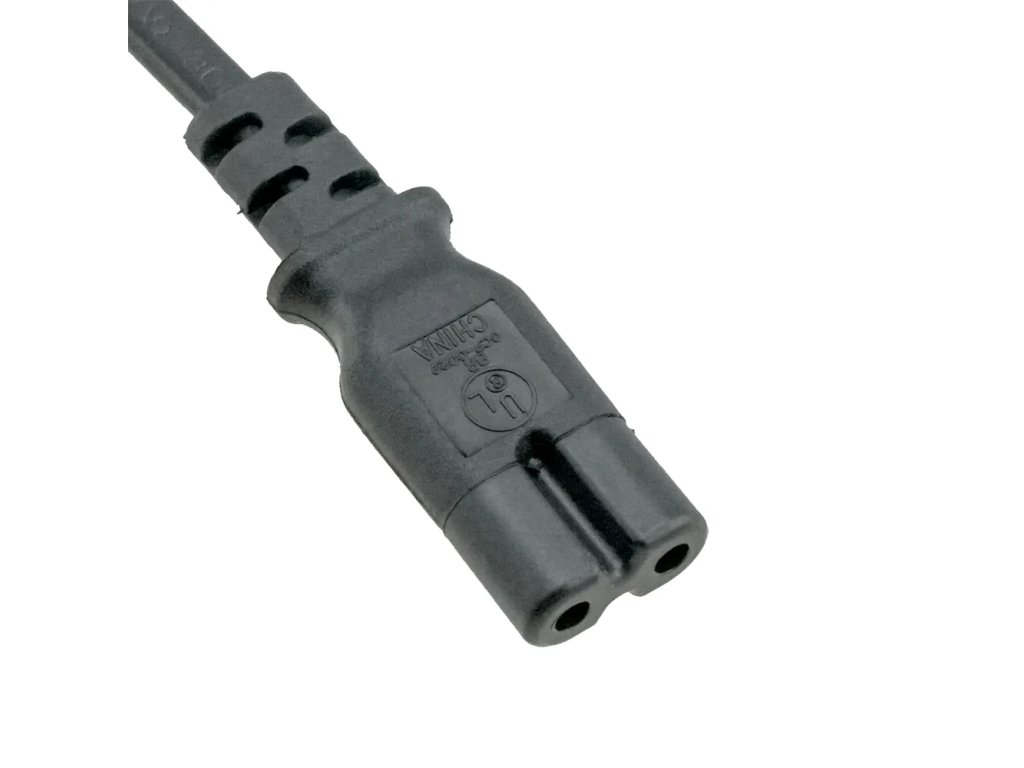

ConnectionBrazilian two-pin plug at the mains supply; IEC C7 connector at the equipment. Category coverage: Brazil, Main catalog. Approval must be confirmed for the intended country.
Key specifications
2.5 A / 250 V
Use only within the rating of the complete product and every connected outlet, inlet and device.
H03VVH-F2.75
Two-core construction without a protective-earth conductor.
Typical applications
Class II equipment
- Compatible two-pin power supplies
- Equipment fitted with an IEC C8 inlet
- Applications that do not require protective earth
Download the product drawing
Use the product drawing to check dimensions, construction and other product-specific information for MK0519.
Download drawing (PDF)No voltage or frequency conversion. A power cord changes the physical connection only. Verify supply voltage, frequency, rating and the SKU-specific market approval.
Need another length, color or quantity?
MK Cable can help you select a stock alternative or prepare a quotation for a project requirement.
Additional parameters
| Category: | Brazil Cords |
|---|---|
| Length: | 1,8 m |
| Color: | Black |
| Conductor Size: | 0,75 sqmm |
| Amperage: | 2,5 Amp |
| Jacket: | H03VVH2-F |
| Certification: | Brazil INMETRO |
| Connector: | C7 |
| Plug: | Brazil NBR 6147 |
| Voltage: | 250 V |
| Model no.: | CZCNBR14136.75C771HANK |
