Extended equipment routing
The 2.5 m length supports flexible routing between the power source and equipment.
Cord Japan JISC8303/C15 Black 2,5 meter, 12A/125V VCT-F3G1,25
International power cord · MK8715

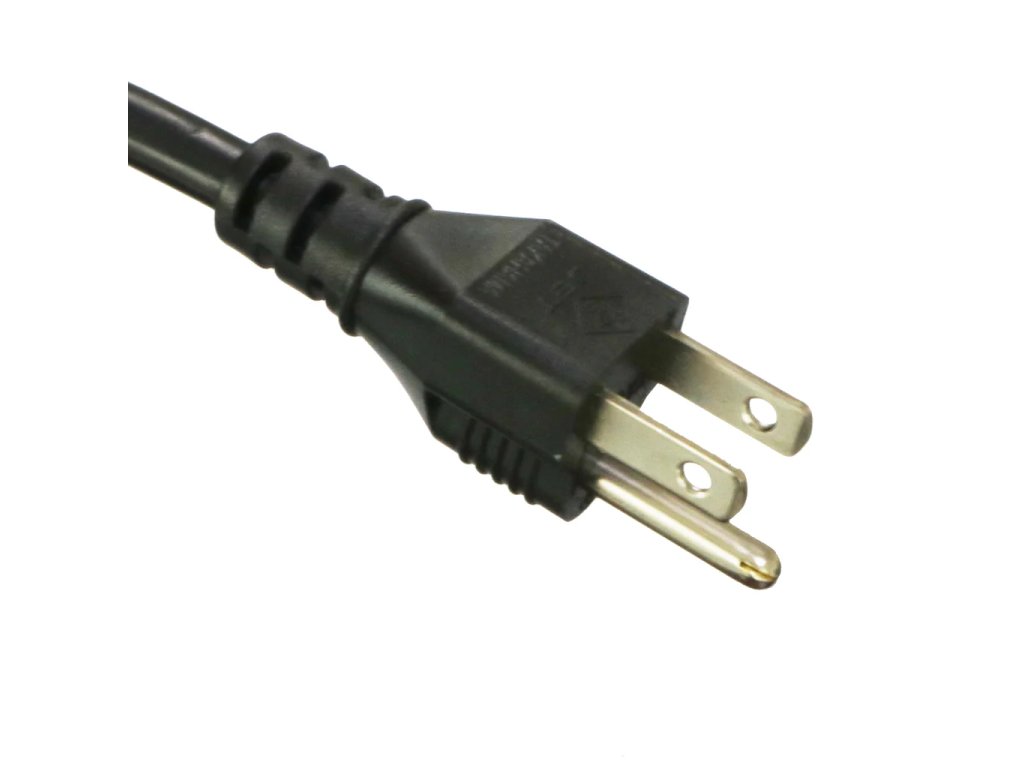

JIS C 8303 plug cord for equipment with an IEC C16 inlet

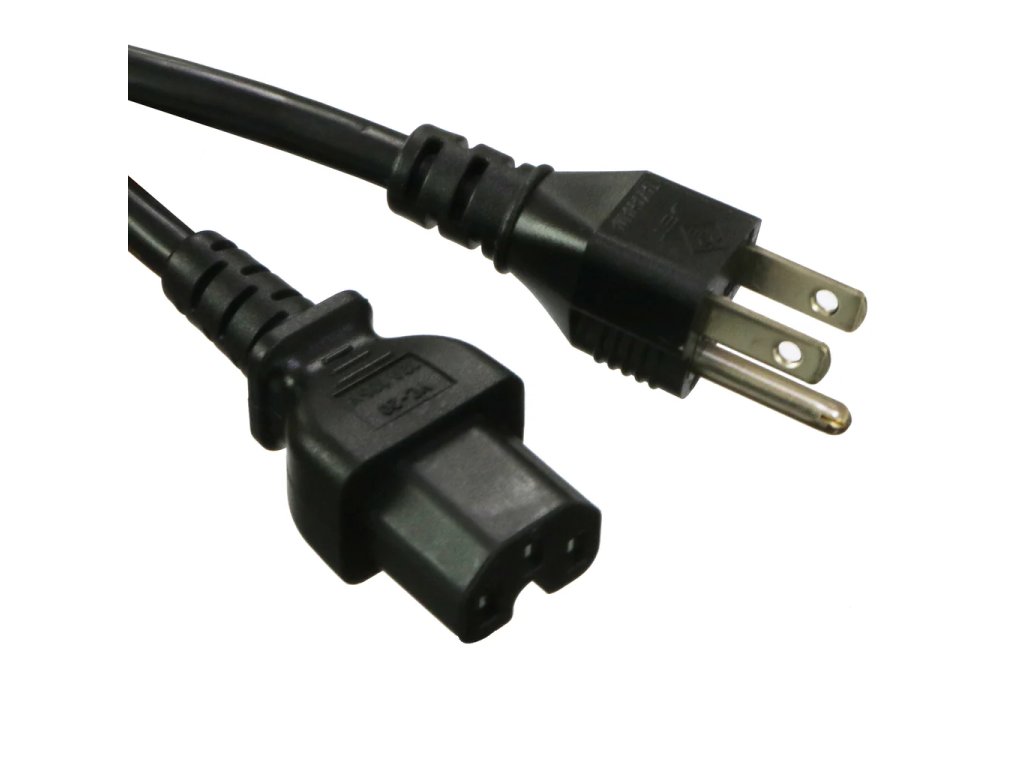

This black JIS C 8303 plug to IEC C15 power cord connects a compatible mains outlet to equipment fitted with an IEC C16 inlet. The cable length is 2.5 m.
ConnectionJIS C 8303 plug at the mains supply; IEC C15 connector at the equipment. Category coverage: Japan, Main catalog. Approval must be confirmed for the intended country.
Key specifications
12 A / 125 V
Use only within the rating of the complete product and every connected outlet, inlet and device.
VCT-F3G1.25
Japanese flexible cable construction; check the exact PSE approval and rating for this SKU.
Typical applications
Hot-condition equipment
- Equipment fitted with an IEC C16 inlet
- Professional IT and industrial devices
- Applications requiring the exact product temperature rating
Download the product drawing
Use the product drawing to check dimensions, construction and other product-specific information for MK8715.
Download drawing (PDF)No voltage or frequency conversion. A power cord changes the physical connection only. Verify supply voltage, frequency, rating and the SKU-specific market approval.
Need another length, color or quantity?
MK Cable can help you select a stock alternative or prepare a quotation for a project requirement.
Additional parameters
| Category: | Japan Cords |
|---|---|
| Length: | 2,5 m |
| Color: | Black |
| Conductor Size: | 1,25 sqmm |
| Amperage: | 12 Amp |
| Jacket: | VCTFK |
| Certification: | Japan PSE |
| Connector: | C15 |
| Plug: | Japan JIS 8303 |
| Voltage: | 125 V |
| Model no.: | CZCJIS83031.25C1598VCTFHANK |
