Standard equipment routing
The 1.8 m length supports flexible routing between the power source and equipment.
Cord Japan JISC8303/C5 Black 1,8m, 7a/125v VCT-F3G,75
International power cord · MK8516

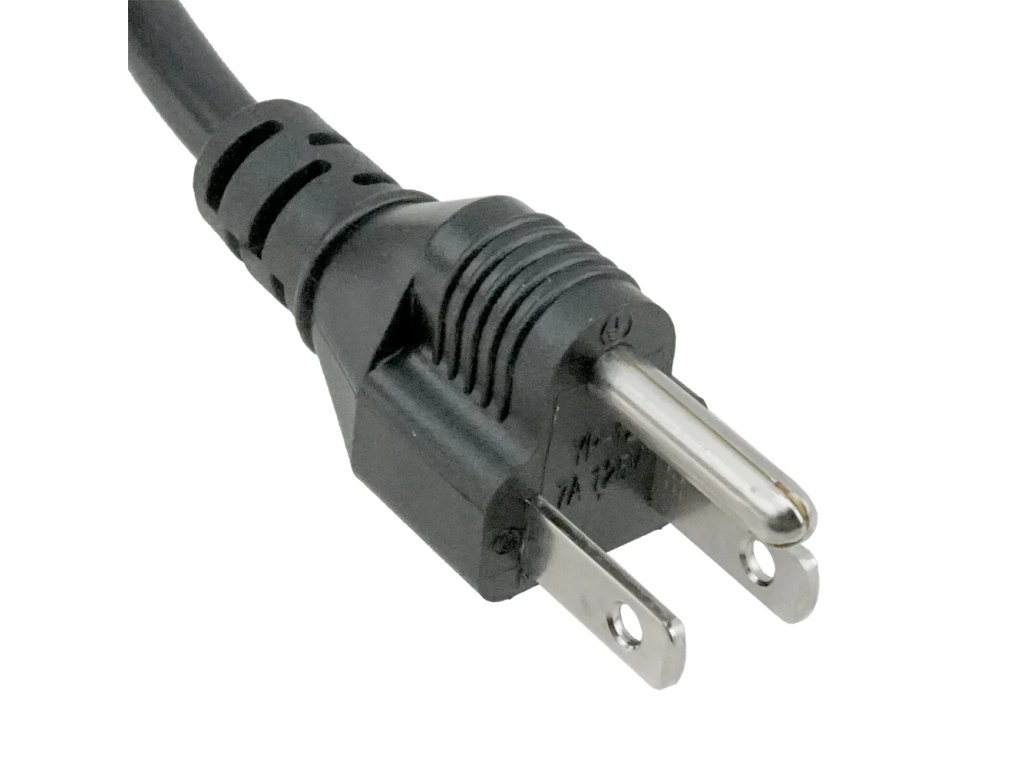

JIS C 8303 plug cord for equipment with an IEC C6 inlet

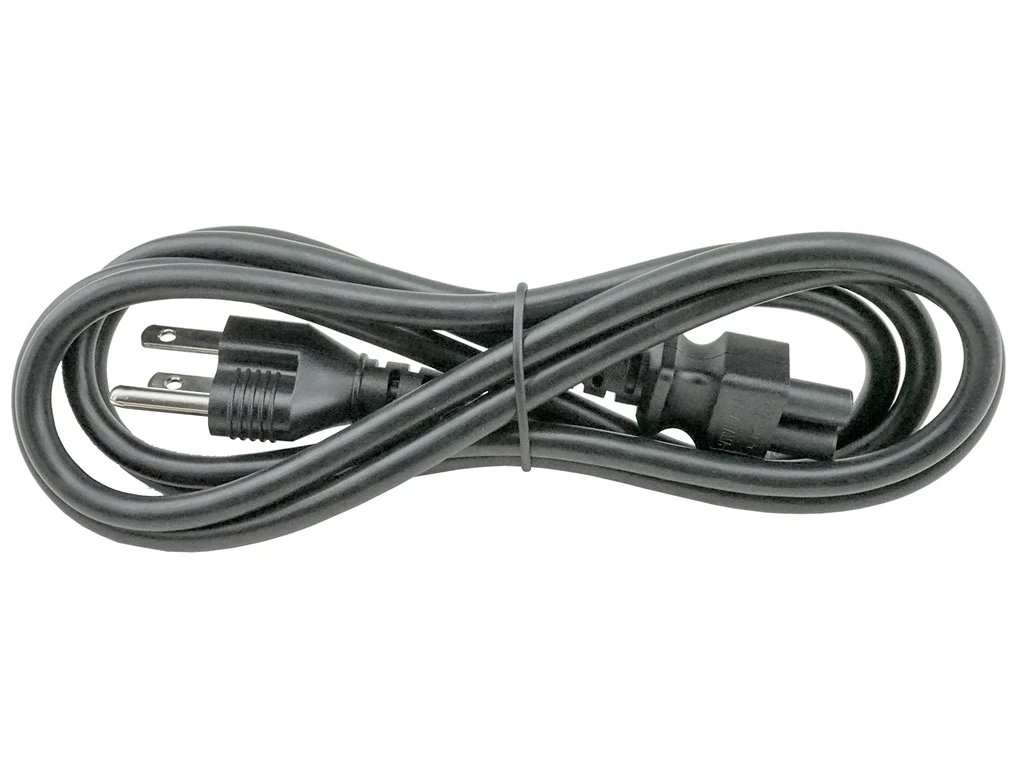

This black JIS C 8303 plug to IEC C5 power cord connects a compatible mains outlet to equipment fitted with an IEC C6 inlet. The cable length is 1.8 m.

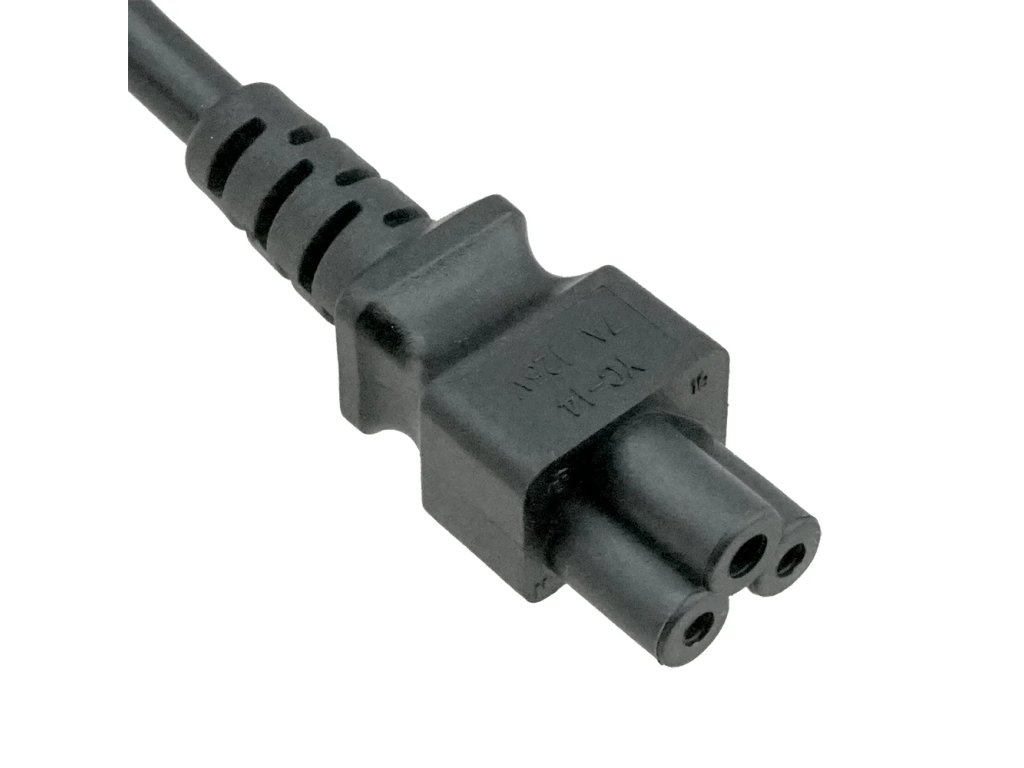

ConnectionJIS C 8303 plug at the mains supply; IEC C5 connector at the equipment. Category coverage: Japan, Main catalog. Approval must be confirmed for the intended country.
Key specifications
7 A / 125 V
Use only within the rating of the complete product and every connected outlet, inlet and device.
VCT-F3G,75
Japanese flexible cable construction; check the exact PSE approval and rating for this SKU.
Typical applications
Compact grounded equipment
- Laptop and projector power supplies
- Equipment fitted with an IEC C6 inlet
- Grounded low-current applications
Download the product drawing
Use the product drawing to check dimensions, construction and other product-specific information for MK8516.
Download drawing (PDF)No voltage or frequency conversion. A power cord changes the physical connection only. Verify supply voltage, frequency, rating and the SKU-specific market approval.
Need another length, color or quantity?
MK Cable can help you select a stock alternative or prepare a quotation for a project requirement.
Additional parameters
| Category: | International Cords |
|---|---|
| Length: | 1,8 m |
| Color: | Black |
| Conductor Size: | 0,75 sqmm |
| Amperage: | 7 Amp |
| Jacket: | VCTFK |
| Certification: | Japan PSE |
| Connector: | C5 |
| Plug: | Japan JIS 8303 |
| Voltage: | 125 V |
| Model no.: | CZCJIS8303.75C571VCTFHANK |
