Standard equipment routing
The 1.8 m length supports flexible routing between the power source and equipment.
Cord Japan JISC8303/C7 Black 1,8m, 7a/125v VCTK-F2,75
International power cord · MK8517
JIS C 8303 plug cord for equipment with an IEC C8 inlet

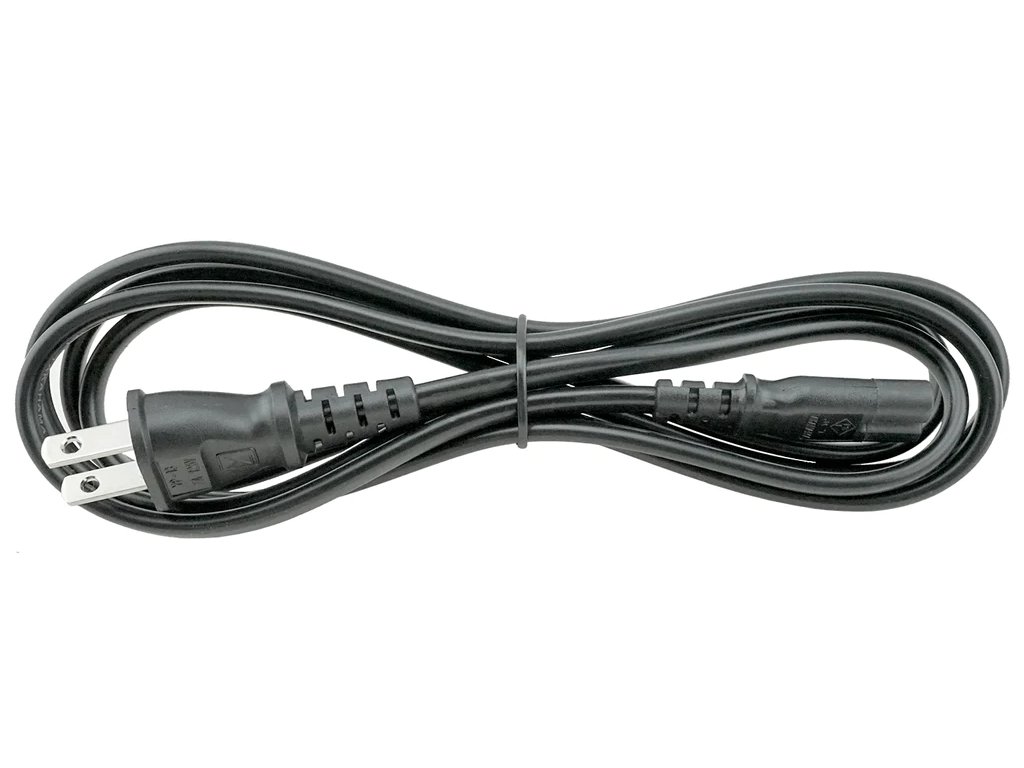

This black JIS C 8303 plug to IEC C7 power cord connects a compatible mains outlet to equipment fitted with an IEC C8 inlet. The cable length is 1.8 m.

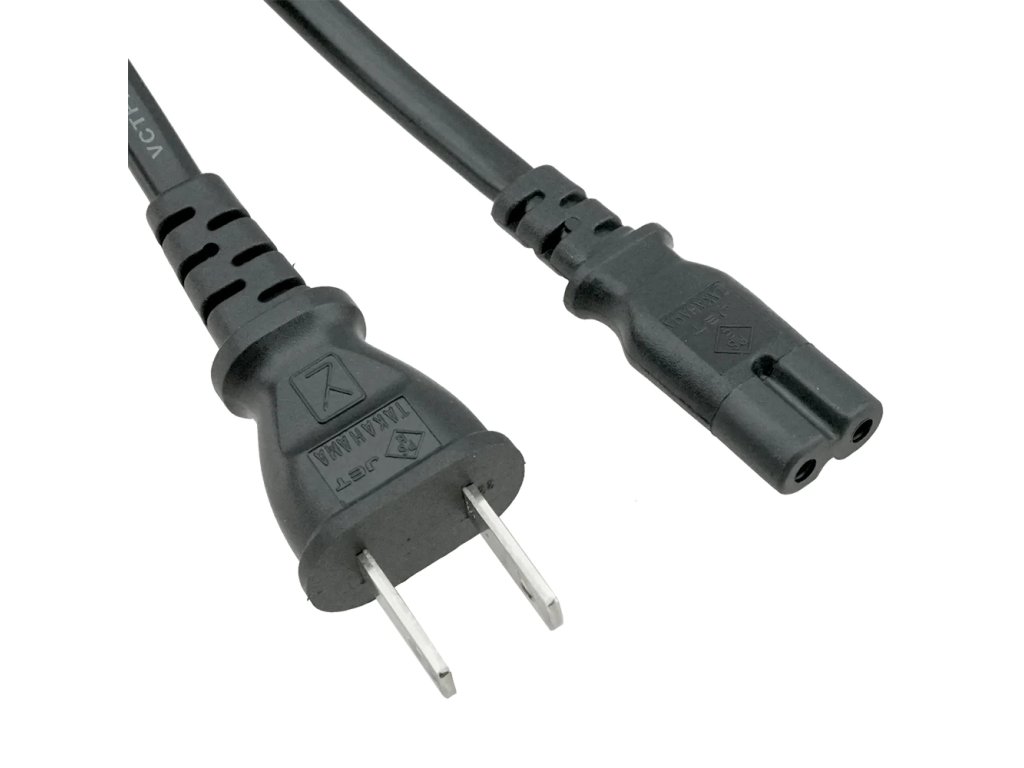

ConnectionJIS C 8303 plug at the mains supply; IEC C7 connector at the equipment. Category coverage: Japan, Main catalog. Approval must be confirmed for the intended country.
Key specifications
7 A / 125 V
Use only within the rating of the complete product and every connected outlet, inlet and device.
VCTK-F2.75
Japanese flexible cable construction; check the exact PSE approval and rating for this SKU.
Typical applications
Class II equipment
- Compatible two-pin power supplies
- Equipment fitted with an IEC C8 inlet
- Applications that do not require protective earth
Download the product drawing
Use the product drawing to check dimensions, construction and other product-specific information for MK8517.
Download drawing (PDF)No voltage or frequency conversion. A power cord changes the physical connection only. Verify supply voltage, frequency, rating and the SKU-specific market approval.
Need another length, color or quantity?
MK Cable can help you select a stock alternative or prepare a quotation for a project requirement.
Additional parameters
| Category: | Japan Cords |
|---|---|
| Length: | 1,8 m |
| Color: | Black |
| Conductor Size: | 0,75 sqmm |
| Amperage: | 7 Amp |
| Jacket: | VCTFK |
| Certification: | Japan PSE |

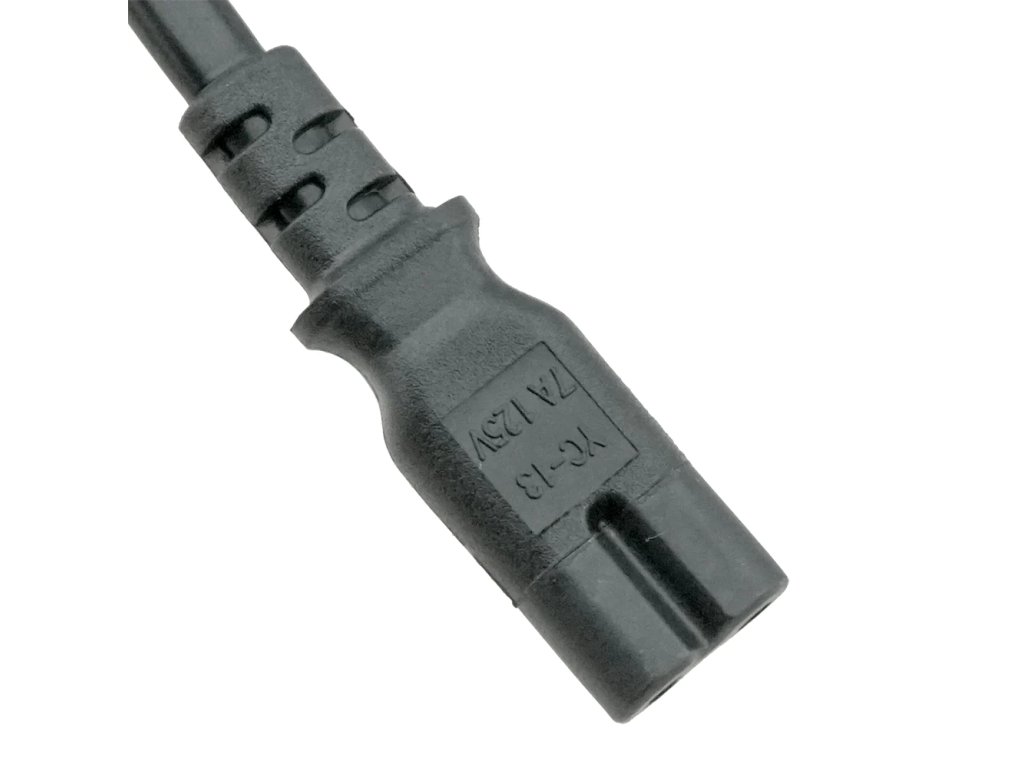

| Connector: | C7 |

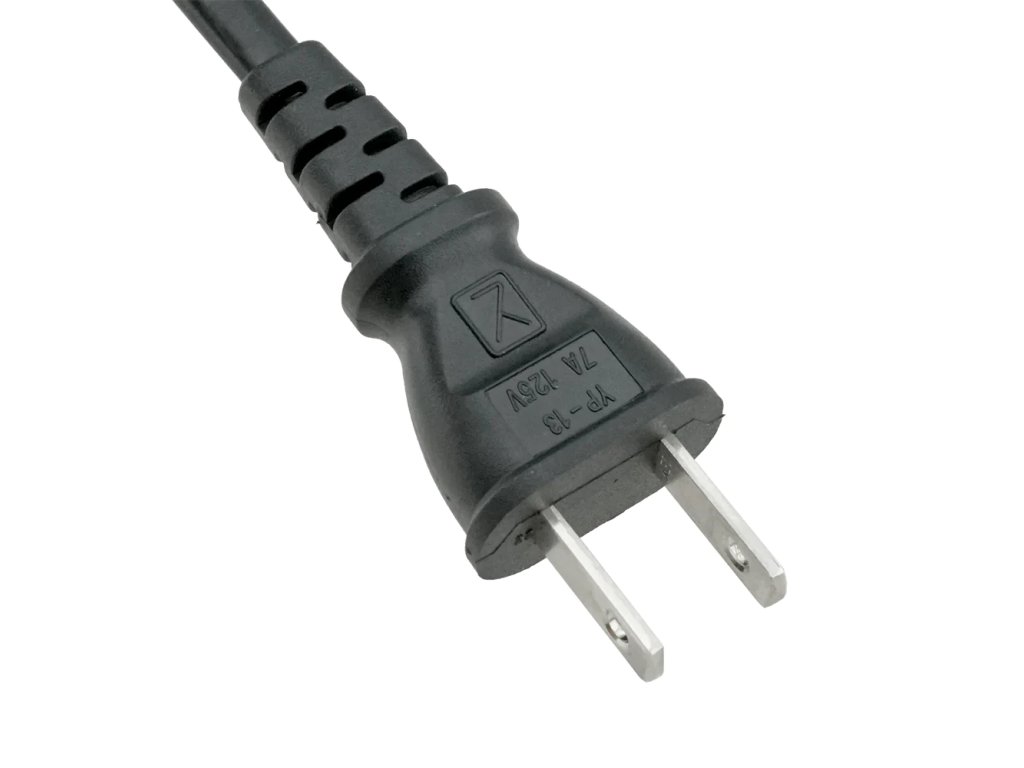

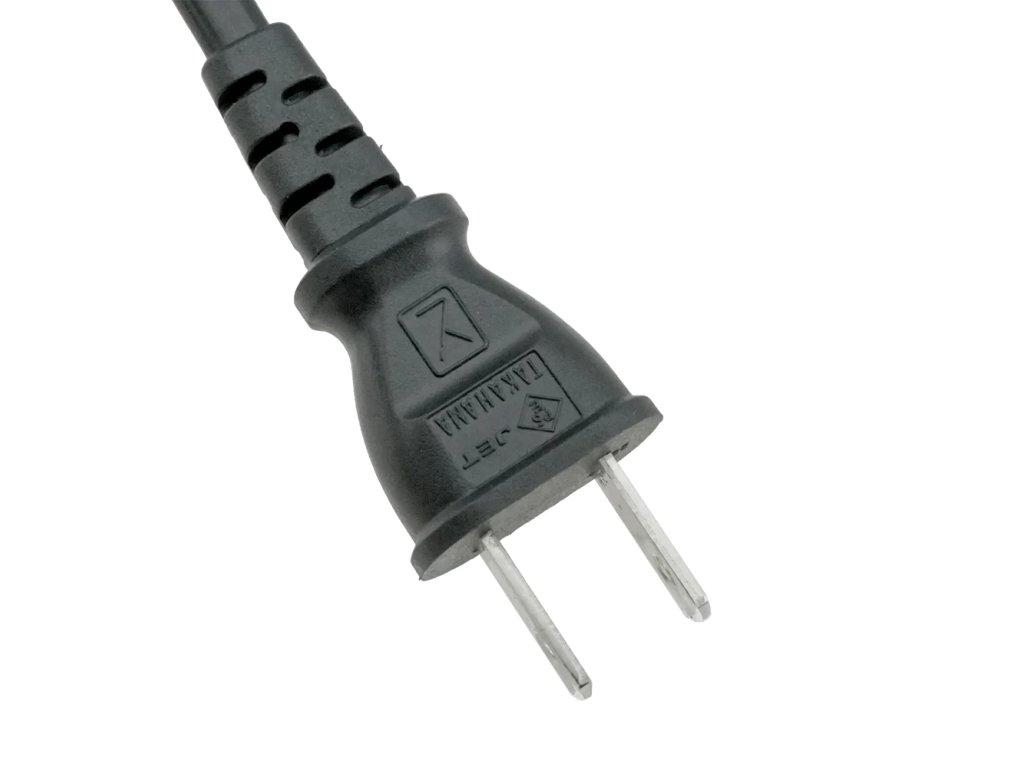

| Plug: | Japan JIS 8303 |
| Voltage: | 125 V |
| Model no.: | CZCJIS8303.75C771VCTFKHANK |
