Extended equipment routing
The 2.5 m length supports flexible routing between the power source and equipment.
Cord Europe CEE7/7 / C15 Black 2,5m, 10a/250v H05V2V2-F3G1,0
International power cord · MK0714
CEE 7/7 cord for equipment with an IEC C16 inlet
This black CEE 7/7 to IEC C15 power cord connects a compatible mains outlet to equipment fitted with an IEC C16 inlet. The cable length is 2.5 m.

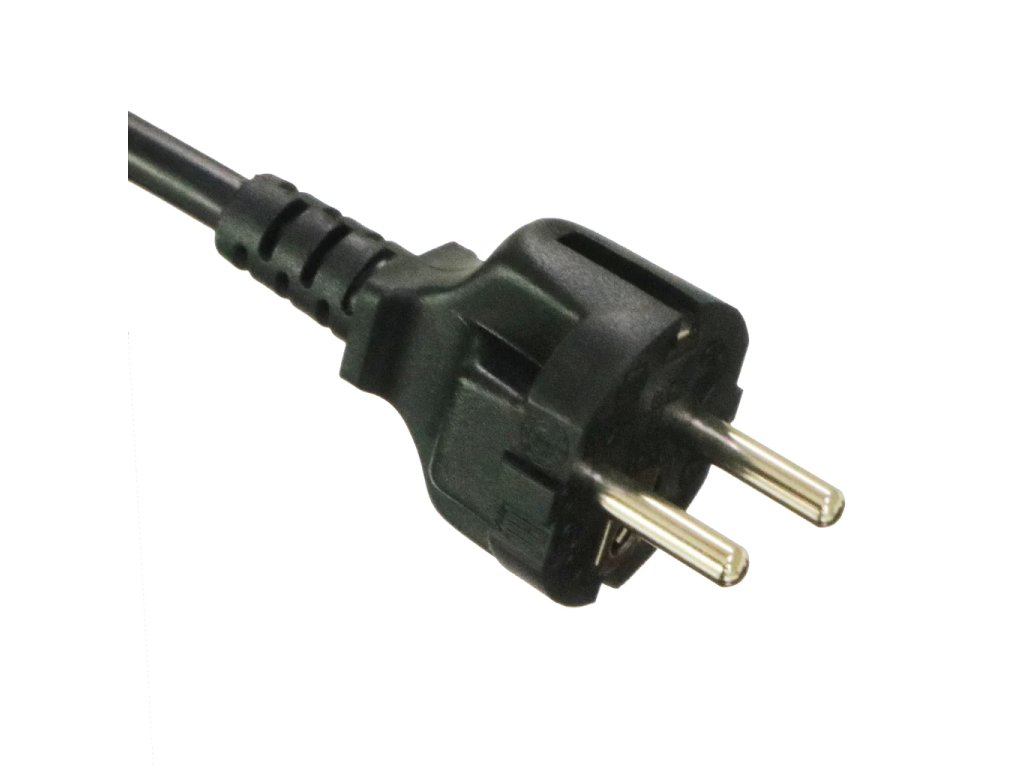

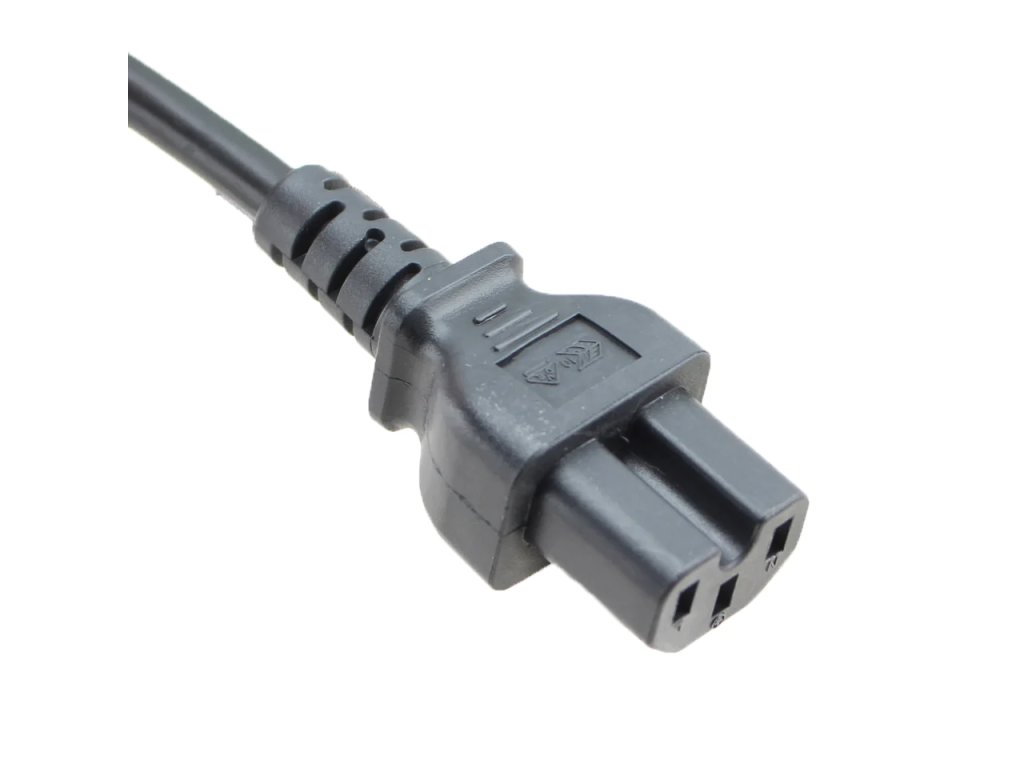

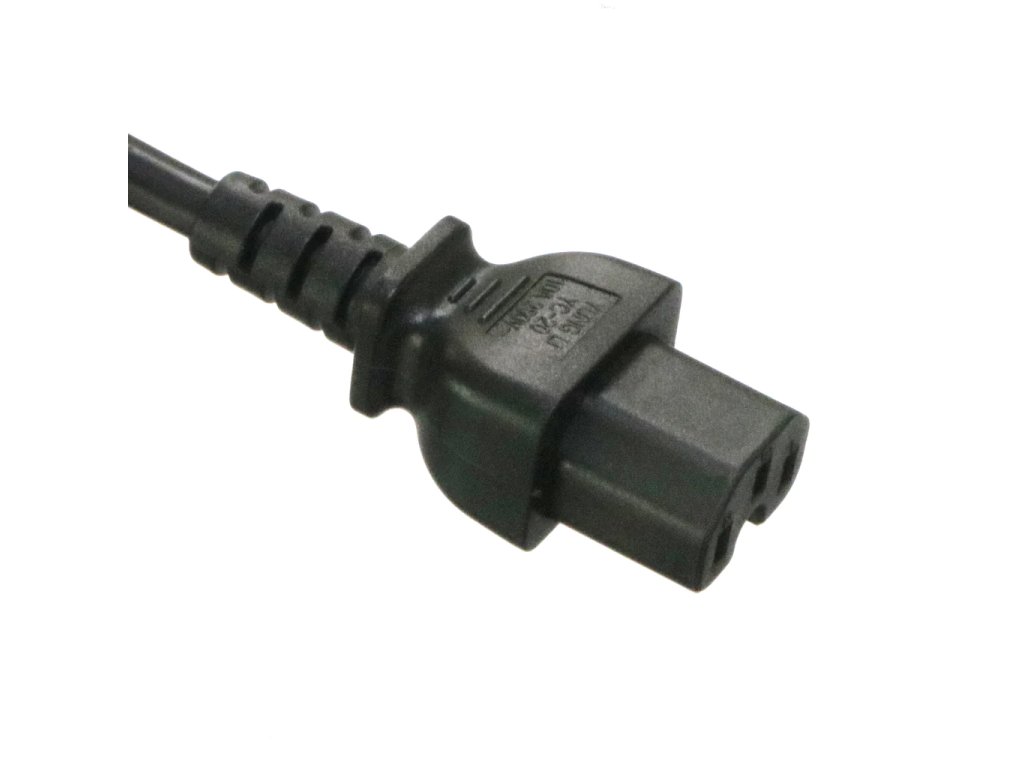

ConnectionCEE 7/7 at the mains supply; IEC C15 connector at the equipment. Category coverage: EURO, Main catalog. Approval must be confirmed for the intended country.
Key specifications
10 A / 250 V
Use only within the rating of the complete product and every connected outlet, inlet and device.
H05V2V2-F3G1.0
Heat-resistant PVC cable construction; the complete-cord temperature rating still depends on every component.
Typical applications
Hot-condition equipment
- Equipment fitted with an IEC C16 inlet
- Professional IT and industrial devices
- Applications requiring the exact product temperature rating
Download the product drawing
Use the product drawing to check dimensions, construction and other product-specific information for MK0714.
Download drawing (PDF)No voltage or frequency conversion. A power cord changes the physical connection only. Verify supply voltage, frequency, rating and the SKU-specific market approval.
Need another length, color or quantity?
MK Cable can help you select a stock alternative or prepare a quotation for a project requirement.
Additional parameters
| Category: | EURO Power Cords |
|---|---|
| Length: | 2,5 m |
| Color: | Black |
| Conductor Size: | 1,0 sqmm |
| Amperage: | 10 Amp |
| Jacket: | H05V2V2 |
| Certification: | CE, ENEC, VDE |
| Connector: | C15 |
| Plug: | CEE7/7 |
| Voltage: | 250 V |
| Model no.: | CZCEE7/71.0C1598H05V2V2 |
