Compact plug-in component
Confirm available clearances and orientation before installation.

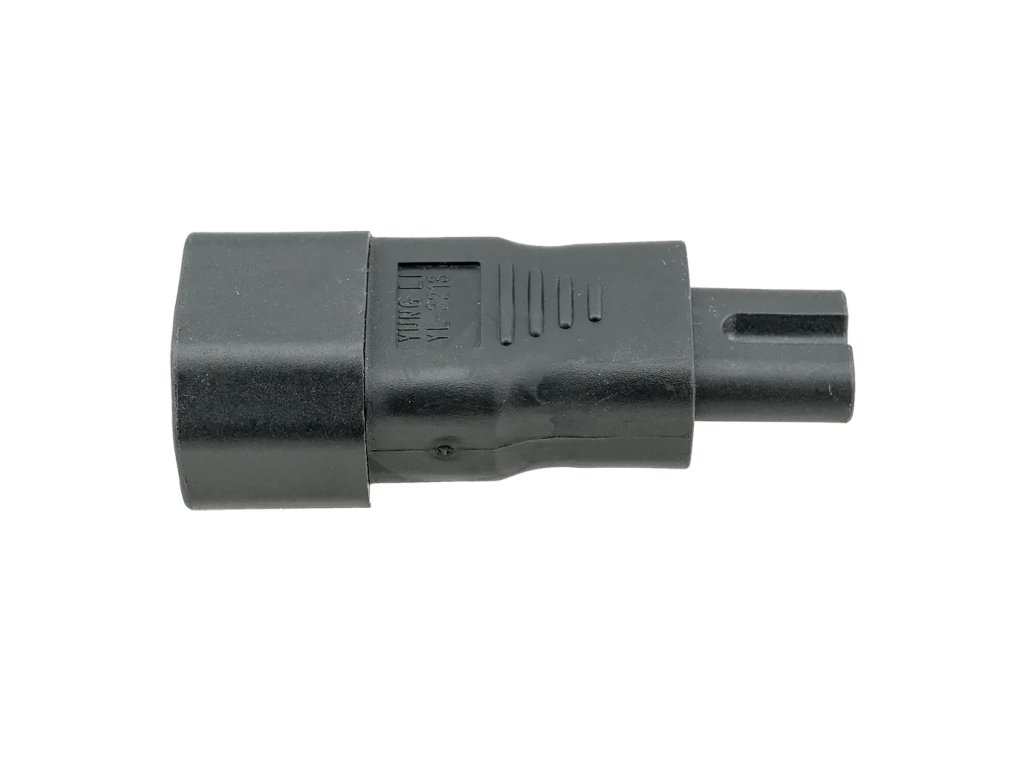

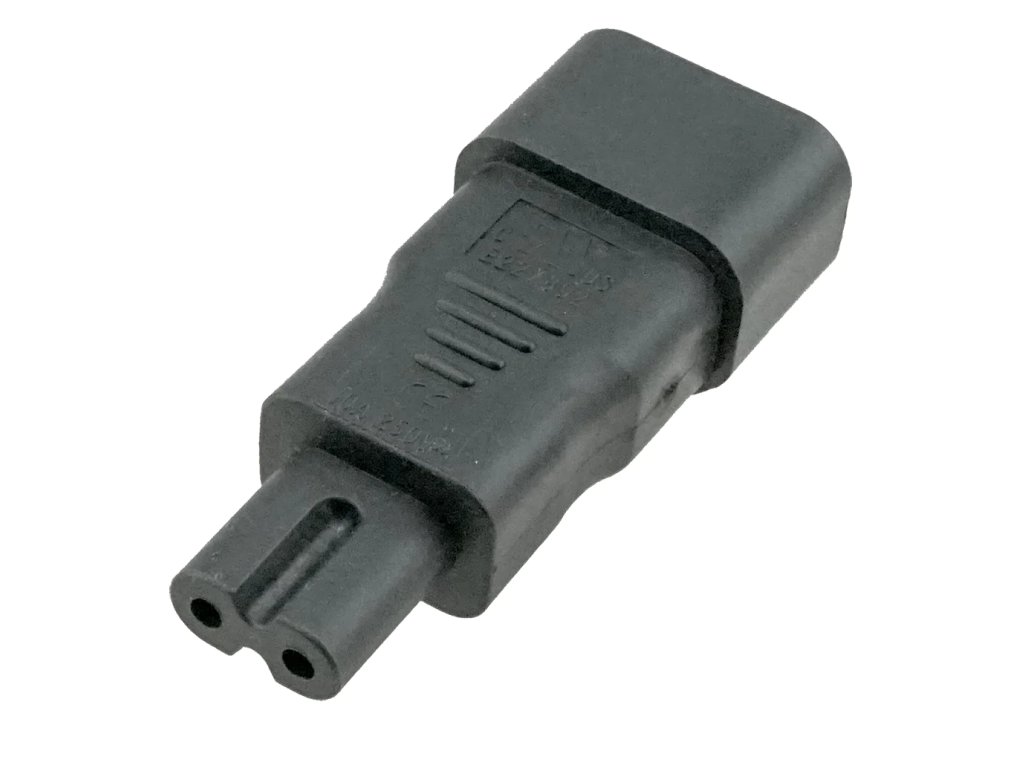

Plug-in adapter · MK8004
Compact interface adapter for IEC C14 plug to IEC C7 connector
This adapter changes the physical connection from IEC C14 plug to IEC C7 connector for compatible equipment and power sources.
ConnectionIEC C14 plug mates with an IEC C13 PDU or UPS outlet; IEC C7 connector connects to an IEC C8 equipment inlet. Confirm orientation, earthing and clearances before use.
Key specifications
Check product rating
Check the current and voltage rating shown in Additional parameters before ordering or installation.
One-piece plug-in adapter
Compact adapter format for a defined pair of interfaces; it is not a universal travel adapter.
Typical applications
Class II equipment
- Compatible two-pin power supplies
- Equipment fitted with an IEC C8 inlet
- Applications that do not require protective earth
Download the product drawing
Use the product drawing to check dimensions, construction and other product-specific information for MK8004.
Download drawing (PDF)No voltage or frequency conversion. The adapter changes the physical interface only. Verify the source, equipment and adapter ratings before use.
Need another length, color or quantity?
MK Cable can help you select a stock alternative or prepare a quotation for a project requirement.
Additional parameters
| Category: | Miscellaneous |
|---|---|
| Certification: | CE, UR |
| Connector: | C7 |
| Plug: | C14 |
| Model no.: | YL-3213 |
