Short equipment connection
The 1.0 m length supports short equipment connections and reduced excess cable.
Splitter Cord C14/x2 C13 Black 1,0 m, 10a/250v H05VV-F3G1.0 18cm legs
Splitter power cord · MK8020
C14 to 2 × C13 power distribution

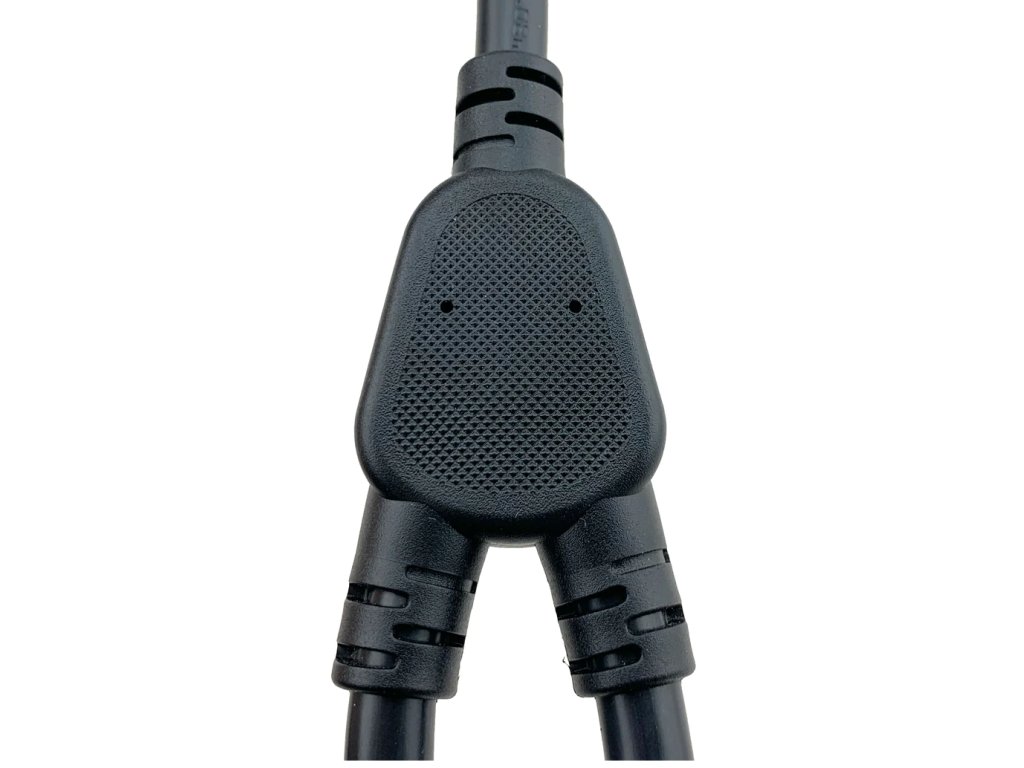

This black splitter uses a C14 plug at the power-source end and 2 IEC C13 connectors for equipment fitted with C14 inlets.
ConnectionC14 plug mates with an IEC C13 PDU outlet; each C13 connector mates with a C14 equipment inlet. The stated current applies to the complete splitter assembly.
Key specifications
10 A / 250 V
Use only within the rating of the complete product and every connected outlet, inlet and device.
H05VV-F3G1.0
Flexible PVC cable construction for professional equipment connections.
Typical applications
One source to multiple devices
- Rack equipment and network devices
- Two or three devices with IEC C14 inlets
- Installations requiring a defined total load
Download the product drawing
Use the product drawing to check dimensions, construction and other product-specific information for MK8020.
Download drawing (PDF)Total-load limit. The rated current is shared by the complete splitter assembly; it is not available independently on every output leg.
Need another length, color or quantity?
MK Cable can help you select a stock alternative or prepare a quotation for a project requirement.
Additional parameters
| Category: | C14 to C13 Black |
|---|---|
| Length: | 1,0 m |
| Color: | Black |
| Conductor Size: | 1,0 sqmm |
| Amperage: | 10 Amp |
| Jacket: | H05VV-F |
| Certification: | CE, ENEC, VDE |
| Connector: | 2x C13 |
| Plug: | C14 |
| Voltage: | 250 V |
| Model no.: | CZC141.0Y39M7 |
